12-in-1 Triple 4K Display USB-C Docking Station with 100W Power Delivery

Description

Product Description

　　Designed for professional workstations and enterprise environments, this 12-in-1 USB-C Docking Station offers a comprehensive desktop expansion solution. Featuring a driver-free design, it transforms a single USB-C connection into a powerhouse of connectivity, supporting triple external displays for maximum productivity.

　　Equipped with dual DisplayPort and one HDMI interface, it supports up to 4K@60Hz resolution, making it ideal for financial analysis, design, and multitasking workflows. The unit is housed in a durable, textured enclosure with a non-slip base and includes a Kensington Security Slot, ensuring both reliability and security in shared office spaces.

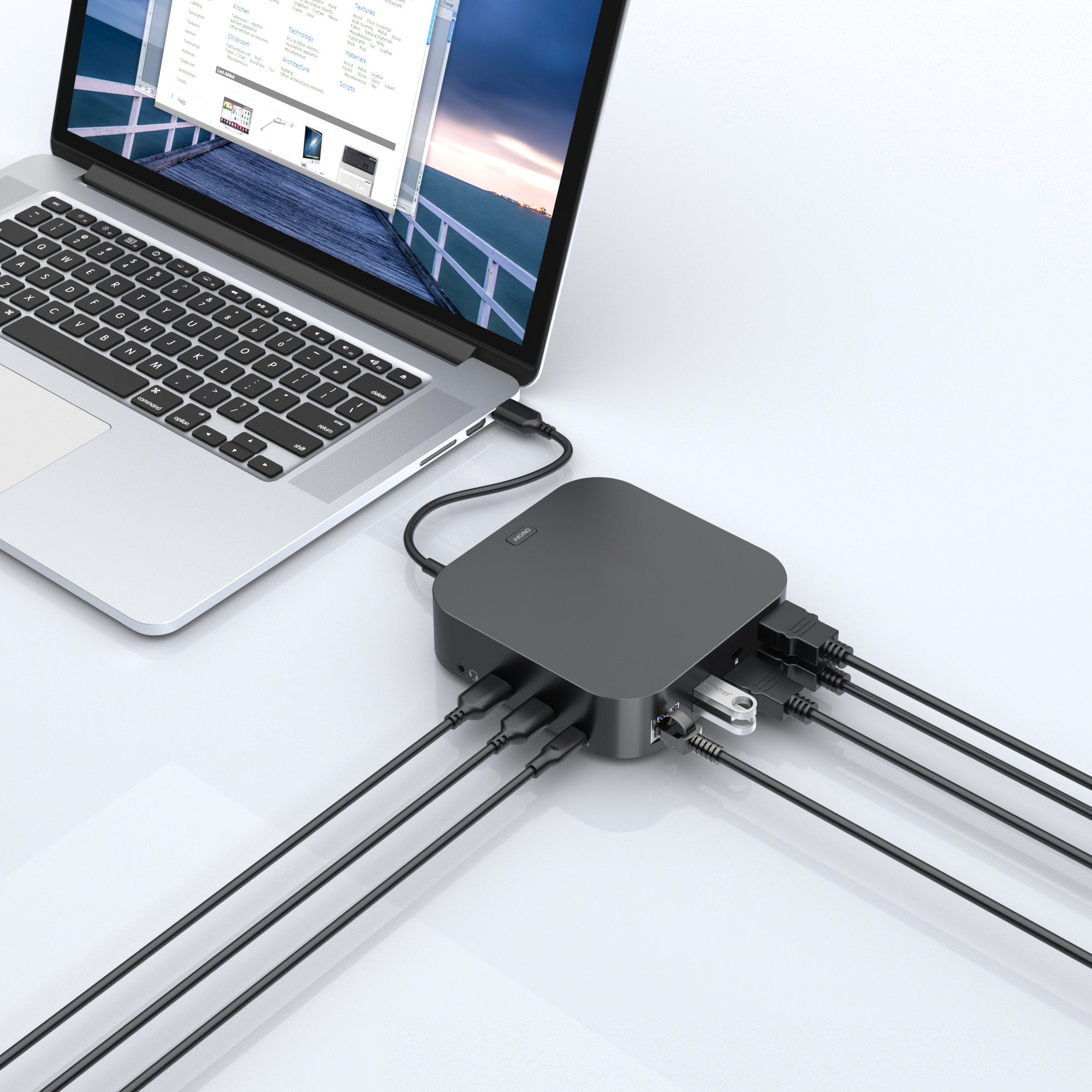

12-in-1 USB-C 3-screen expansion cable box with all interfaces operating at full capacity

12-in-1 USB-C 3-screen expansion cable box with all interfaces operating at full capacity

Key Highlights

　　Triple 4K Display Support: Expand your desktop across three monitors via 2x DisplayPort and 1x HDMI. Supports MST (Multi-Stream Transport) for extended or mirrored modes.

　　High-Speed Data Transfer: Features 4x USB-A 3.0 and 1x USB-C 3.0 ports with 5Gbps transfer rates, ensuring fast file transfers for external drives and peripherals.

　　100W Power Delivery: Pass-through charging (up to 100W input) keeps the host laptop powered while running all connected peripherals.

　　Enterprise-Grade Security: Integrated Kensington Security Slot protects hardware in public or open-office environments.

　　Gigabit Connectivity: Stable wired network access via the 1000Mbps RJ45 Ethernet port.

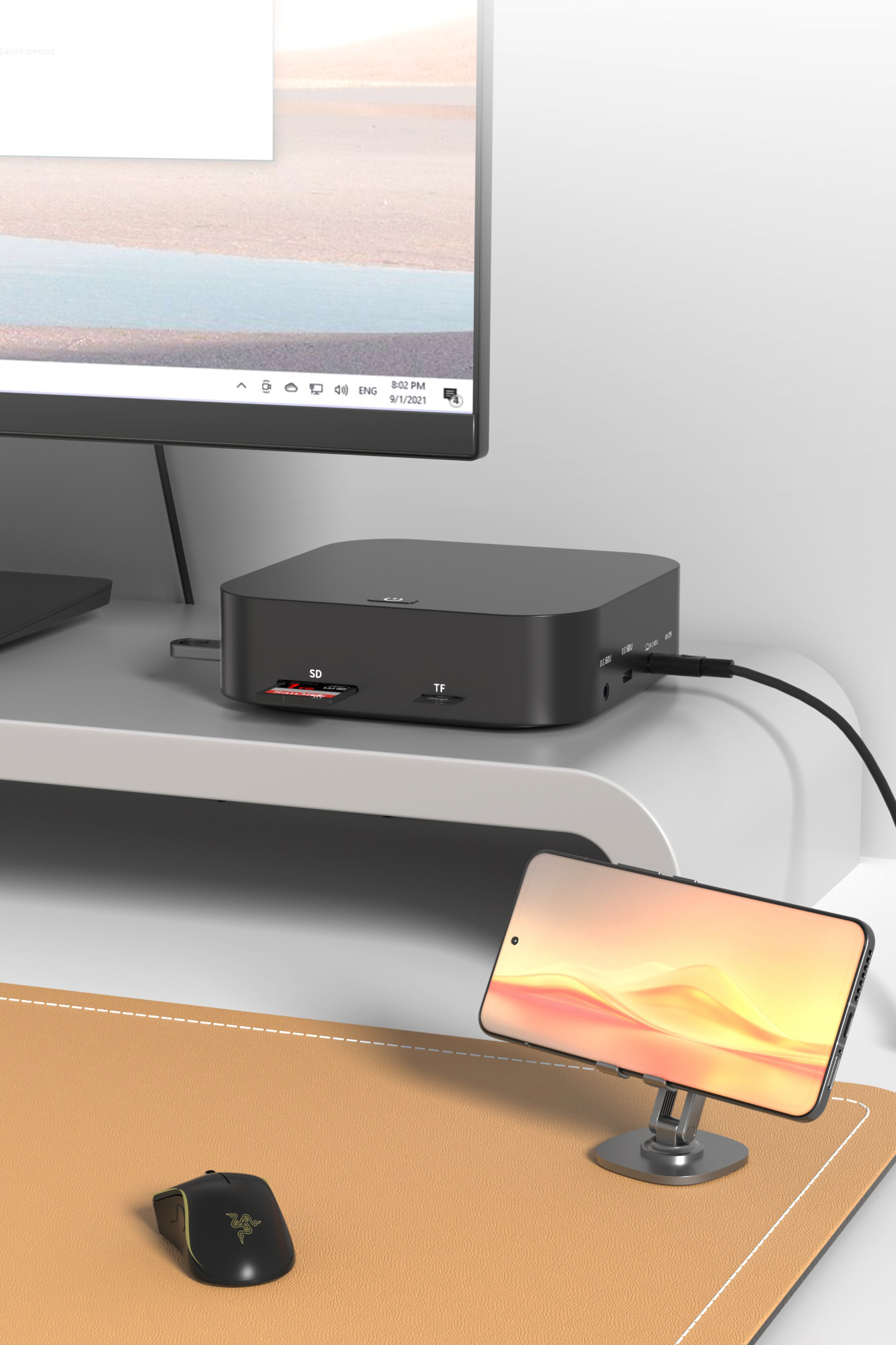

12-in-1 USB-C Tri-Screen Expansion Dock with Card Reader and Operating Scene Diagram

Technical Specifications

　　Interface Layout:

　　1 x USB-C (Host): Connects to Laptop/PC (Supports PD Charging & DP Alt Mode 1.4)

　　1 x USB-C (PD Input): Supports PD 3.0 up to 100W (Power only)

　　1 x HDMI: Up to 4K@60Hz (HDCP 2.2)

　　2 x DisplayPort (DP): Up to 4K@60Hz (HDCP 2.2)

　　1 x RJ45 Ethernet: 10/100/1000 Mbps Gigabit Auto-Negotiation

　　4 x USB-A 3.0: 5Gbps Data Transfer

　　1 x USB-C 3.0: 5Gbps Data Transfer

　　1 x 3.5mm Audio: Combo Jack (Audio Out + Mic In)

　　1 x Kensington Lock Slot: Anti-theft security support

　　1 x Power Button: On/Off Control

　　Physical & Environmental:

　　Housing Material: Durable Textured ABS (Sun-pattern finish)

　　Design: Anti-slip silicone base

　　Driver Support: Plug and Play (Driver-free)

　　System Compatibility: Windows, macOS (MST mode depends on OS support), Linux
