Instantly transform your ultrabook or mini-PC into a high-performance workstation.The TD001 Graphics Card Docking Station utilizes Intel-certified Thunderbolt™ technology to break through the hardware bottlenecks of portable devices. Whether for professional 3D rendering or high-load gaming, this solution delivers desktop-class graphics processing capabilities without the need for a bulky tower chassis.
Core Advantages
1. 40Gbps Lossless High-Speed Transmission: Powered by the Intel JHL7440 controller chip and supporting Thunderbolt 3/4 and USB4 protocols, it provides a massive bandwidth of up to 40Gbps. This ensures external graphics cards operate at near-native speeds, significantly shortening video rendering times and reducing data processing latency.
2. Dual-Port Intelligent "Blind Mating" Design: Featuring an innovative dual USB-C interface design, it supports interchangeable uplink/downlink blind mating. The system automatically identifies connected devices without the need to distinguish specific ports, greatly simplifying the installation process for users and enhancing connectivity flexibility.
3. Future-Proof Spacious Compatibility (Supports 400mm Graphics Cards): Designed specifically to accommodate the latest high-end hardware, the chassis space supports graphics cards up to 400mm in length. It is perfectly compatible with top-tier cards like the NVIDIA RTX 4090/50 series and AMD RX 7900 XTX, ensuring your equipment adapts to future iterations of GPU technology.

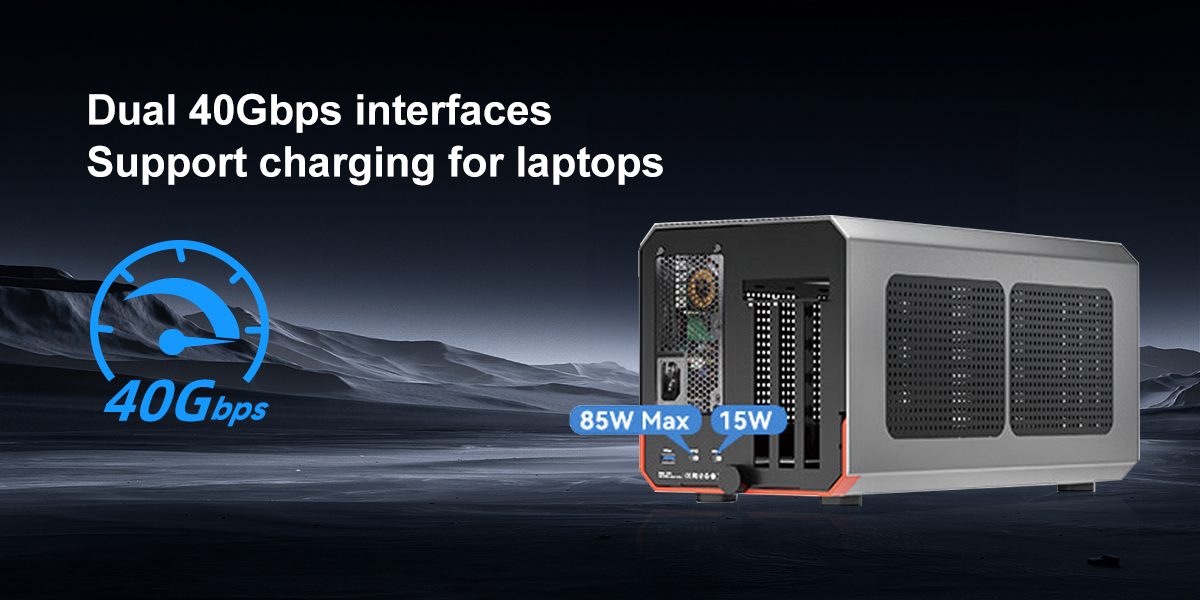

4. Single-Cable 85W Power Delivery: Simplify desktop cable management. While driving high-performance graphics cards, the docking station can provide up to 85W PD fast charging to your laptop via the same cable, completely eliminating battery anxiety and ensuring your device stays powered throughout high-intensity workflows.
Application Scenarios
Creative Professionals: Tailored for video editors and designers using MacBook Pro or Windows laptops, significantly boosting rendering efficiency in Adobe Premiere, After Effects, or DaVinci Resolve.
3D Engineering & Architectural Design: Provides powerful CUDA/OpenCL computing support required for CAD drawing, 3D modeling, and real-time rendering on portable devices.
Gaming Enthusiasts: Instantly upgrades standard business laptops into gaming rigs, easily running AAA titles with Ray Tracing support.
AI & Data Science: Suitable for developers needing local GPU compute power for machine learning and AI model training who do not wish to invest in dedicated servers.
Quality & Customization

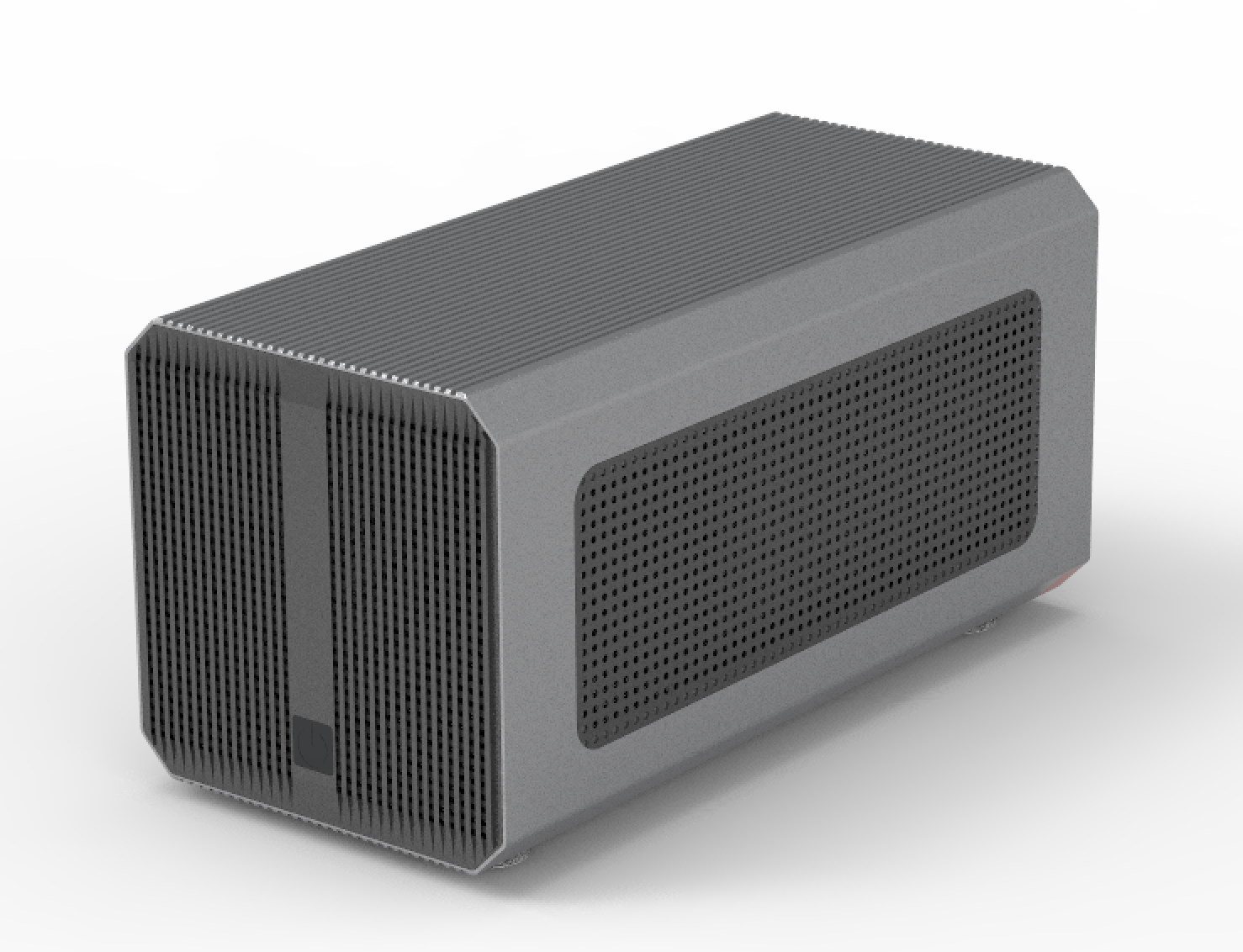

The TD001 is manufactured to industrial standards, featuring a high-strength anodized aluminum alloy shell ("Apple Gray" finish) with excellent heat dissipation and scratch resistance. The product has undergone strict compatibility testing in Windows 10/11 and macOS environments.
OEM/ODM Services: We offer comprehensive customization services, including brand logo laser engraving, packaging design, and firmware adjustments, helping you build a highly competitive private label product.
Package Contents
1. eGPU Thunderbolt 4 Docking Station * 1
2. Thunderbolt 4 Data Cable * 1
3. Power Cord * 1
4. User Manual * 1
5. Tool Kit * 1
Warranty
Product Warranty Period (Global): 1-Year Limited Warranty
Looking to provide your customers with the ultimate graphics expansion solution? Contact us today to get the detailed technical datasheet and the latest B2B wholesale quotation.
| Feature | Details |
| Model Number | TD001 |
| Chipset Solution | Intel JHL7440 (Thunderbolt Controller) |
| Transfer Speed | Up to 40Gbps (Thunderbolt 3/4 / USB4) |

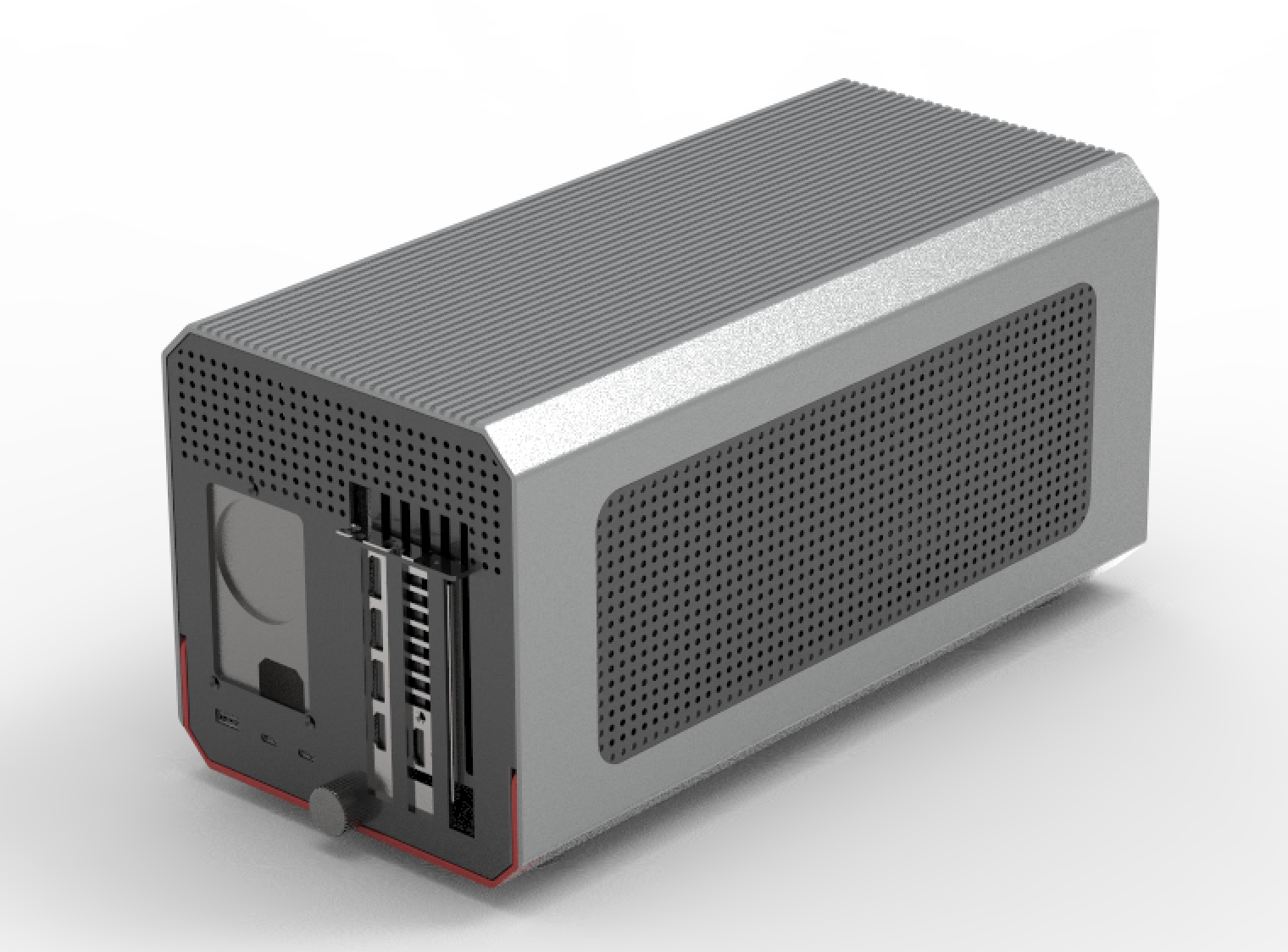

| External Ports | 2 × USB-C (TB3/4/USB4, Blind-Mate, Daisy Chain) 1 × USB-A 3.2 Gen 2 (10Gbps) |
| Internal Interface | 1 × PCIe 3.0 x16 Slot (Supports Hot-Swap) |
| GPU Compatibility | Supports Graphics Cards up to 400mm Length Compatible with NVIDIA RTX 20/30/40/50 & AMD RX 7000/8000/9000 Series |
| Power Delivery (PD) | Host Charging: Up to 85W Peripheral Charging: Up to 15W |
| Power Supply Support | Compatible with 2U & SFX Power Supply Max PSU Dimensions: 240mm × 100mm × 70mm |
| OS Compatibility | Windows: 10 / 11 (64-bit) MacOS: 12 and later (High Sier-ra 10.13+ for AMD eGPU) |
| Material & Finish | High-Strength Aluminum Alloy + ABS Plastic (Apple Gray) |
| Dimensions | 384mm (L) × 182.7mm (W) × 192.7mm (H) |
| Operating Environment | Temp: 0°C ~ 40°C |
| In The Box | 1× eGPU Dock, 1× Thunderbolt 4 Cable (0.5m), 1× Power Cord, 1× Screwdriver Kit |
