Product Description
Core Selling Points
Intel-Certified Thunderbolt 4 Technology: Delivers full 40Gbps bandwidth with seamless backward compatibility for USB4, USB 3.0, and USB 2.0 protocols.
Extreme Visual Expansion: Supports up to 8K@60Hz ultra-clear output and features industry-leading 6-screen simultaneous display capabilities.
High-Efficiency Power Delivery: Supports PD 3.0, providing up to 90W dynamic reverse fast charging for your laptop.
Industrial-Grade Cooling: Built with high-performance aluminum alloy to ensure the Thunderbolt Dock remains cool and stable even under heavy workloads.
Detailed Functional Breakdown
1. Ultimate Visuals: 8K & Multi-Monitor Matrix
Single-Screen 8K Experience: The downstream Thunderbolt 4 port drives 7680x4320@60Hz for top-tier image quality.2. Lightning-Fast Data Exchange
10Gbps Transmission Array: Equipped with 1 Type-C and 6 USB-A ports, all supporting USB 3.2 Gen2 standards for high-speed data transfer.3. Comprehensive Connectivity
2.5G Multi-Gigabit Ethernet: The 2.5G RJ45 port provides a more stable and faster networking environment than traditional Gigabit ports.

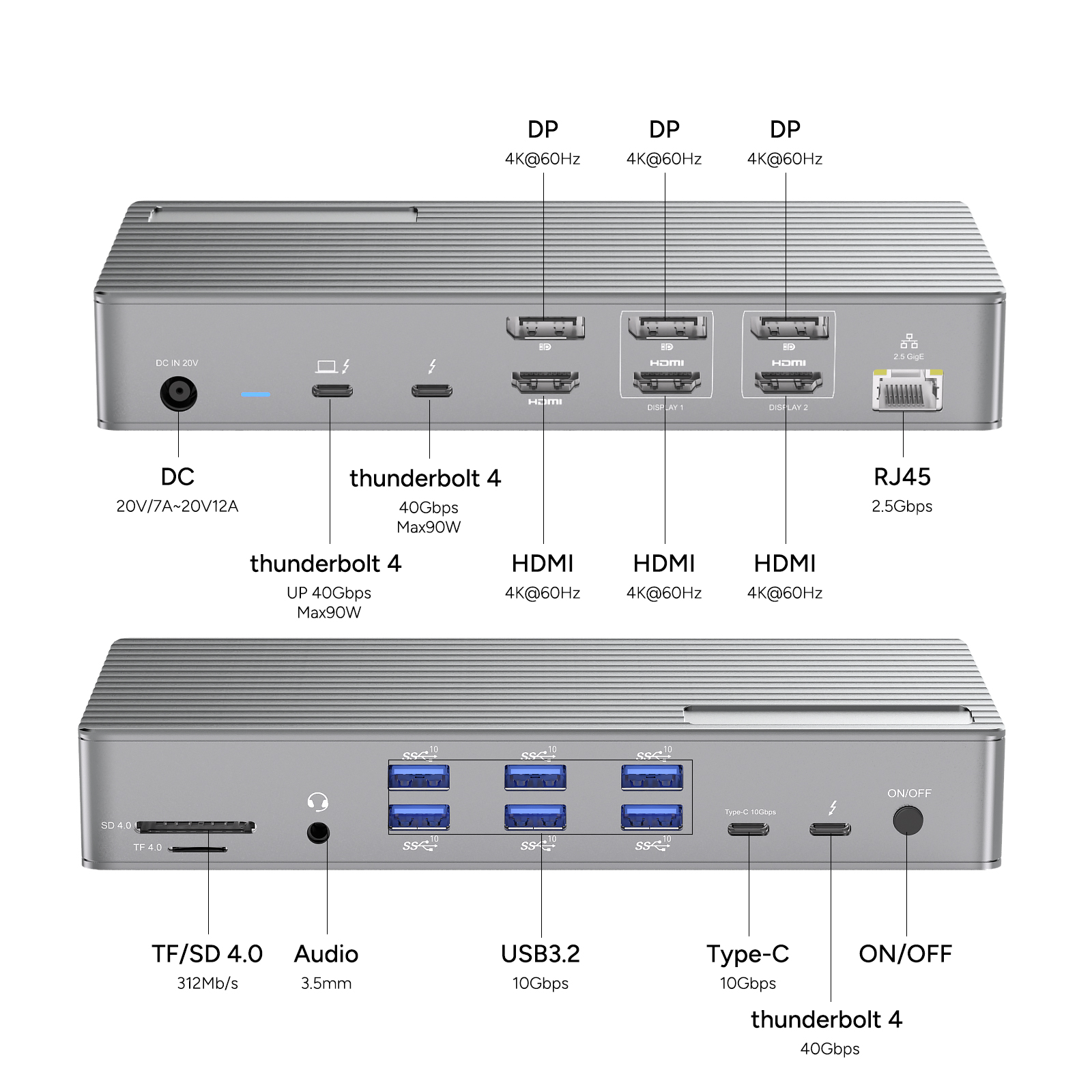

Specifications
| Category | Specification Details |
| Upstream Port | 1* Type-C Thunderbolt 4 (40Gbps, 90W PD Charging) |
| Downstream Thunderbolt 4 Ports | 2* Type-C Thunderbolt 4 (40Gbps, 8K Video/Daisy Chaining) |
| Video Interfaces | 1* HDMI (4K/60Hz), 1* DP (4K/60Hz), 2* Mutually Exclusive DisplayLink Groups (HDMI/DP) |
| USB Data Ports | 6* USB-A (10Gbps), 1* Type-C (10Gbps) |
| Network & Audio | 1* 2.5G RJ45, 1* 3.5mm Audio/Mic Combo Jack |
| Storage Slots | SD 4.0 & TF 4.0 Dual Slots (UHS-III, Simultaneous Read/Write) |
| Power Input | DC Input (Supports 20V/7A to 20V/12A) |
