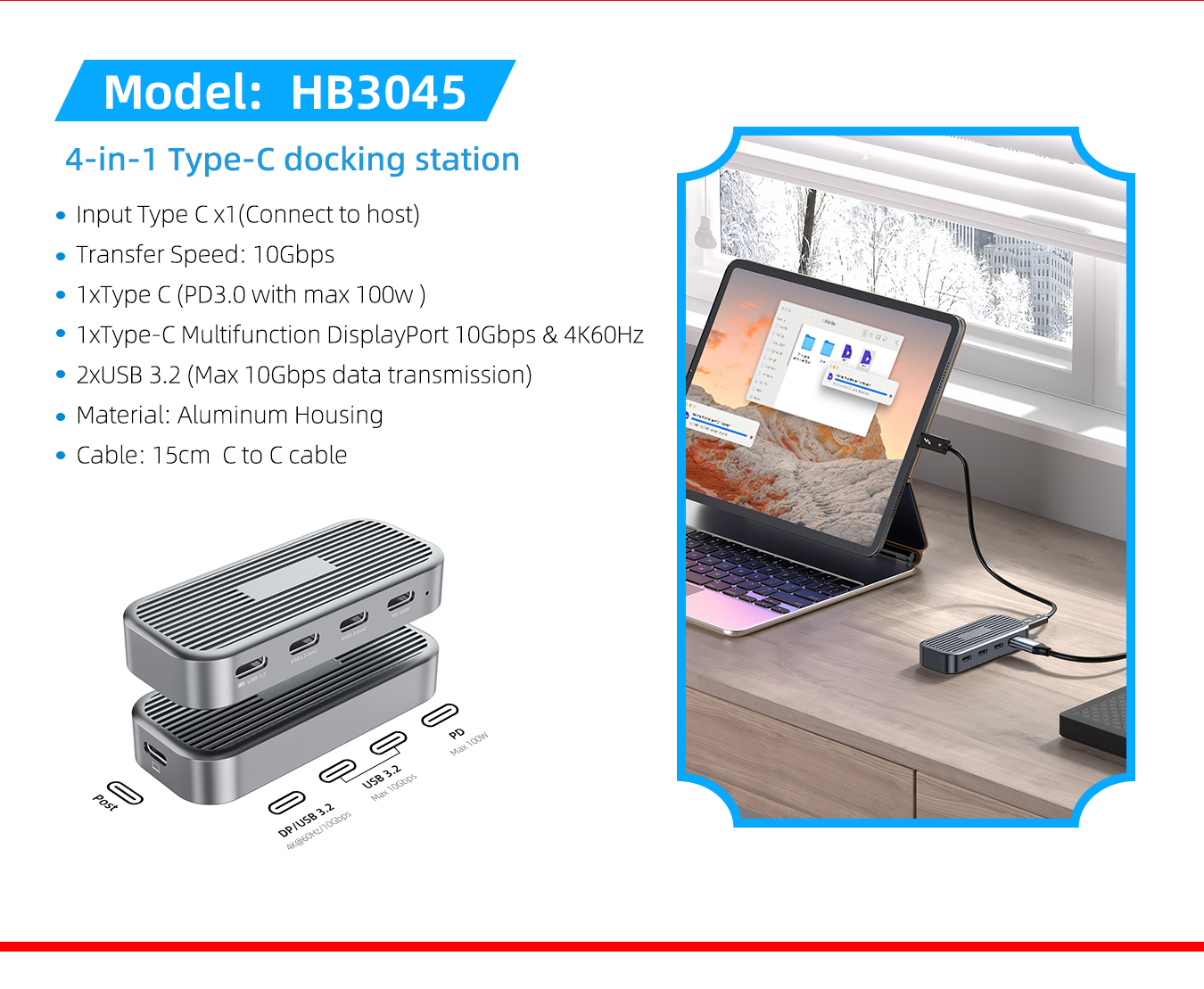

Product Description This 4-in-1 hub is a high-performance expansion solution built on USB 3.2 Gen2 architecture. It delivers full-link 10Gbps bandwidth across data ports and supports 4K@60Hz video output via Type-C. Designed for professional mobile workstations, it combines high-speed data transfer with 85W PD charging in a compact form factor, suitable for OEM/ODM integration.
Key Features
1. Full-Link 10Gbps Bandwidth: Unlike standard Gen1 hubs, all downstream USB-C ports support USB 3.2 Gen2 (10Gbps), ensuring maximum speed for external SSDs and high-load data transfers.
2. 4K@60Hz Video Output: Features a multi-function Type-C port (DP Alt Mode) supporting resolutions up to 4096x2160 @ 60Hz for fluid, high-definition visual tasks.
3. Smart PD 3.0 Charging: Supports 100W max input with dynamic power allocation, providing up to 85W passthrough charging to the host laptop while powering peripherals.
Technical Specifications
- Host Interface: 1× USB-C (USB 3.2 Gen2, 10Gbps, PD 85W Output)
- Power Input: 1× USB-C (PD 3.0, Max 100W Input)
- Data Ports: 2× USB-C (USB 3.2 Gen2, 10Gbps, BC1.2 Charging)
- Video/Data Port: 1× USB-C (4K@60Hz Video + 10Gbps Data, BC1.2 Charging)
Design & Compatibility

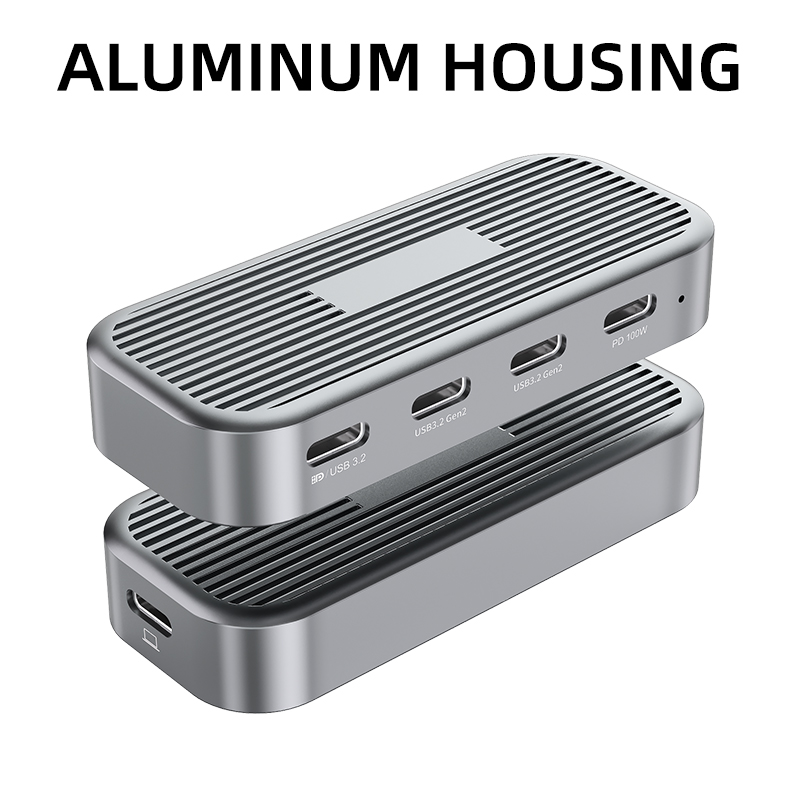

Thermal Management: Aviation-grade aluminum alloy housing ensures efficient heat dissipation, preventing throttling during continuous 10Gbps transmission.
Compatibility: Plug-and-play (driverless) support for Windows, macOS, Android, and Linux.
Form Factor: Slim, portable design ideal for business travel and clean desktop setups.
