Product Description

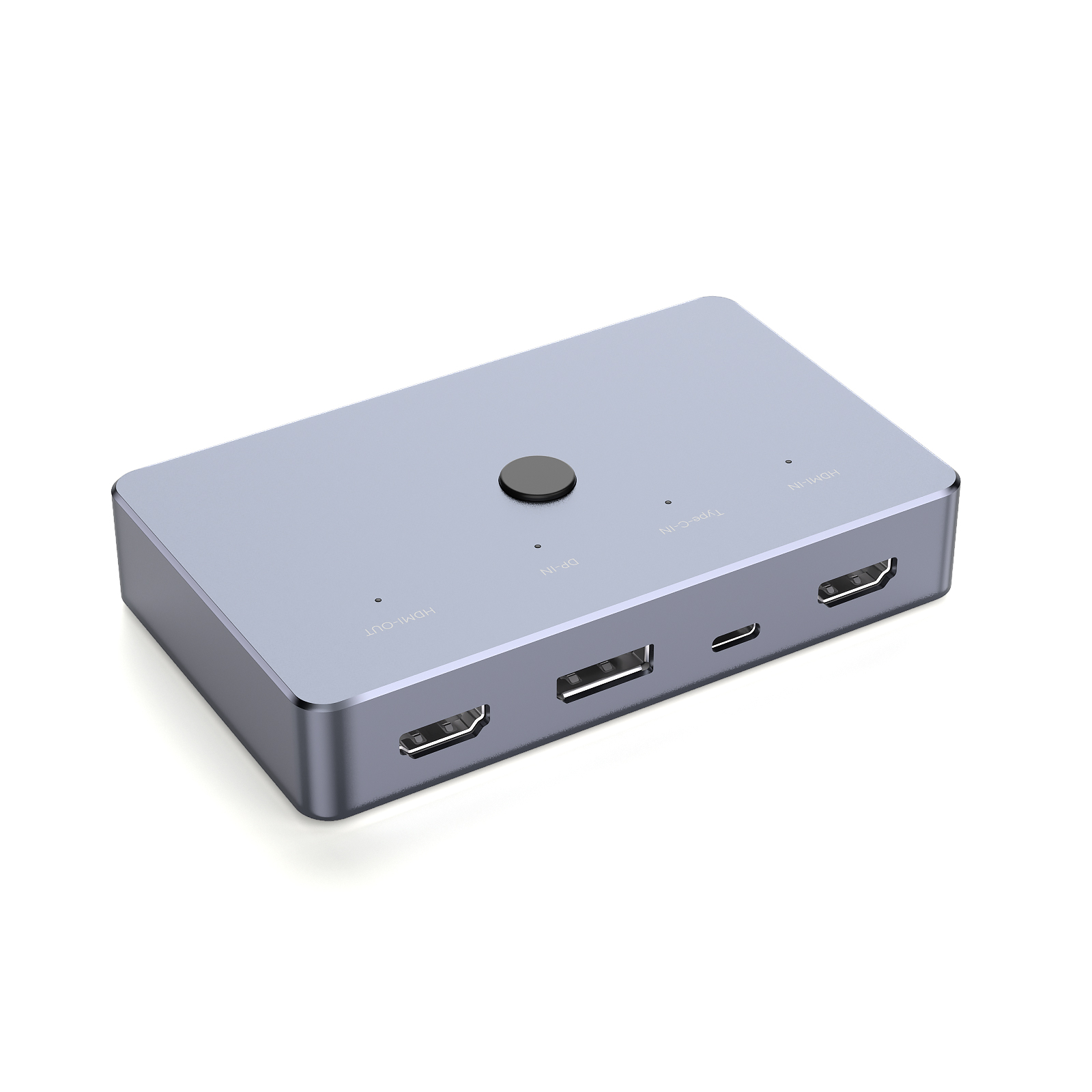

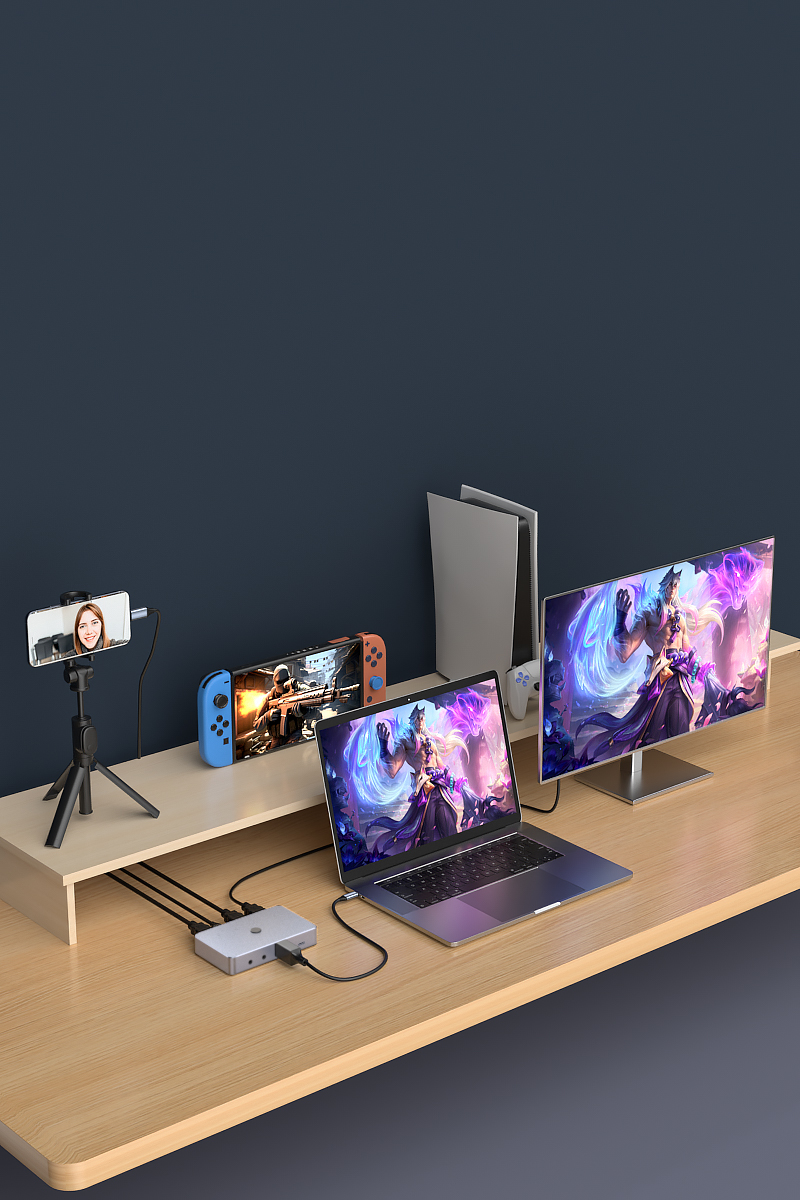

Overview The 3-in-1 Video Capture Card is a versatile solution designed for content creators, broadcasters, and B2B professional applications. It solves the challenge of multiple device connectivity by integrating HDMI, DisplayPort, and Type-C inputs into a single switching unit. Whether capturing from a gaming console (PS5, Switch), a high-end PC, or a mobile device (Tablet/Phone via DP Alt Mode), this device ensures seamless signal switching and high-fidelity capture.
Key Features

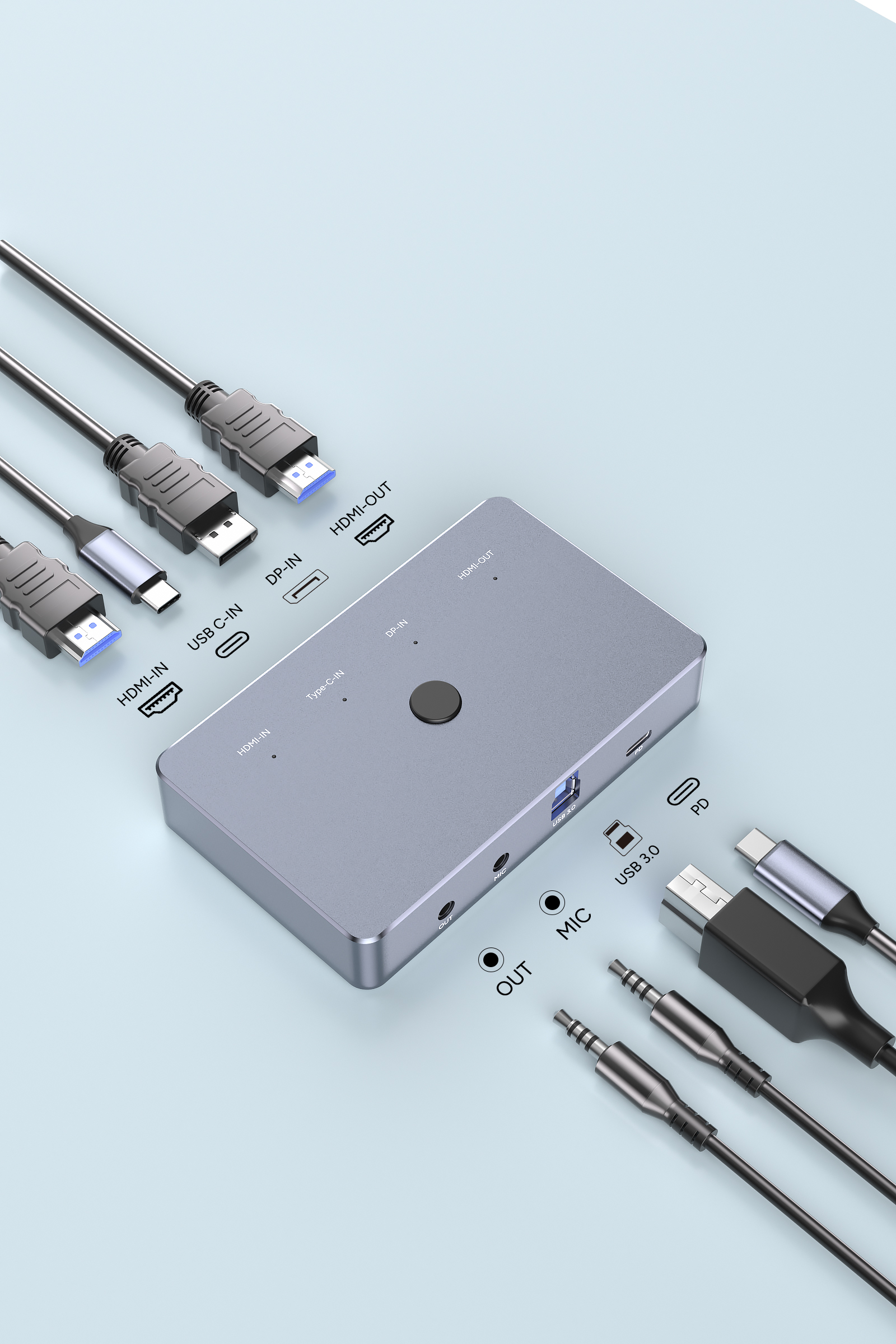

1. Multi-Interface Switching: Equipped with HDMI, DisplayPort, and Type-C input ports. Users can switch between sources via a physical button. (Note: Supports single-stream capture; HDMI is prioritized when multiple sources are connected simultaneously).
2. High-Performance Capture & Loop-out:
- Capture: Transmits up to 4K@60Hz video to your PC via the USB 3.0 Type-B interface.

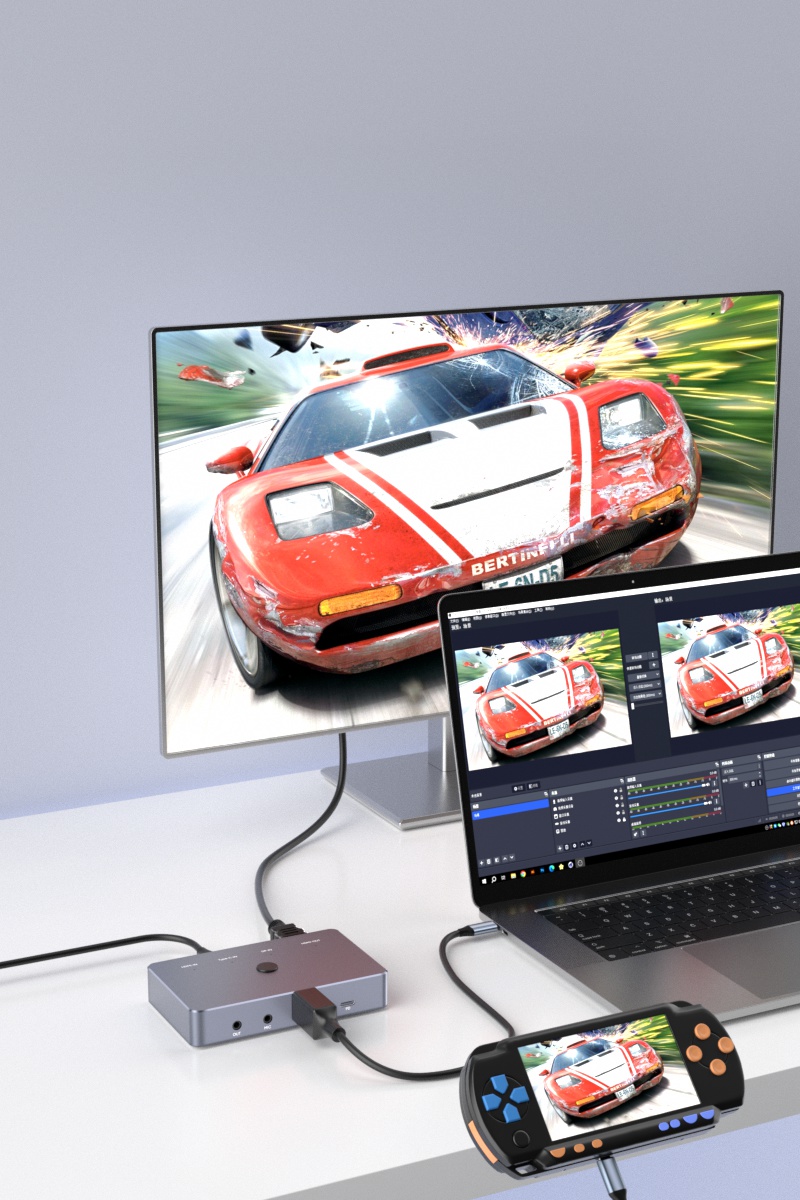

- Loop-out: Features a dedicated HDMI output allowing zero-latency pass-through of the sele-cted source to a monitor, supporting 4K@60Hz, VRR (Variable Refresh Rate), and HDR.

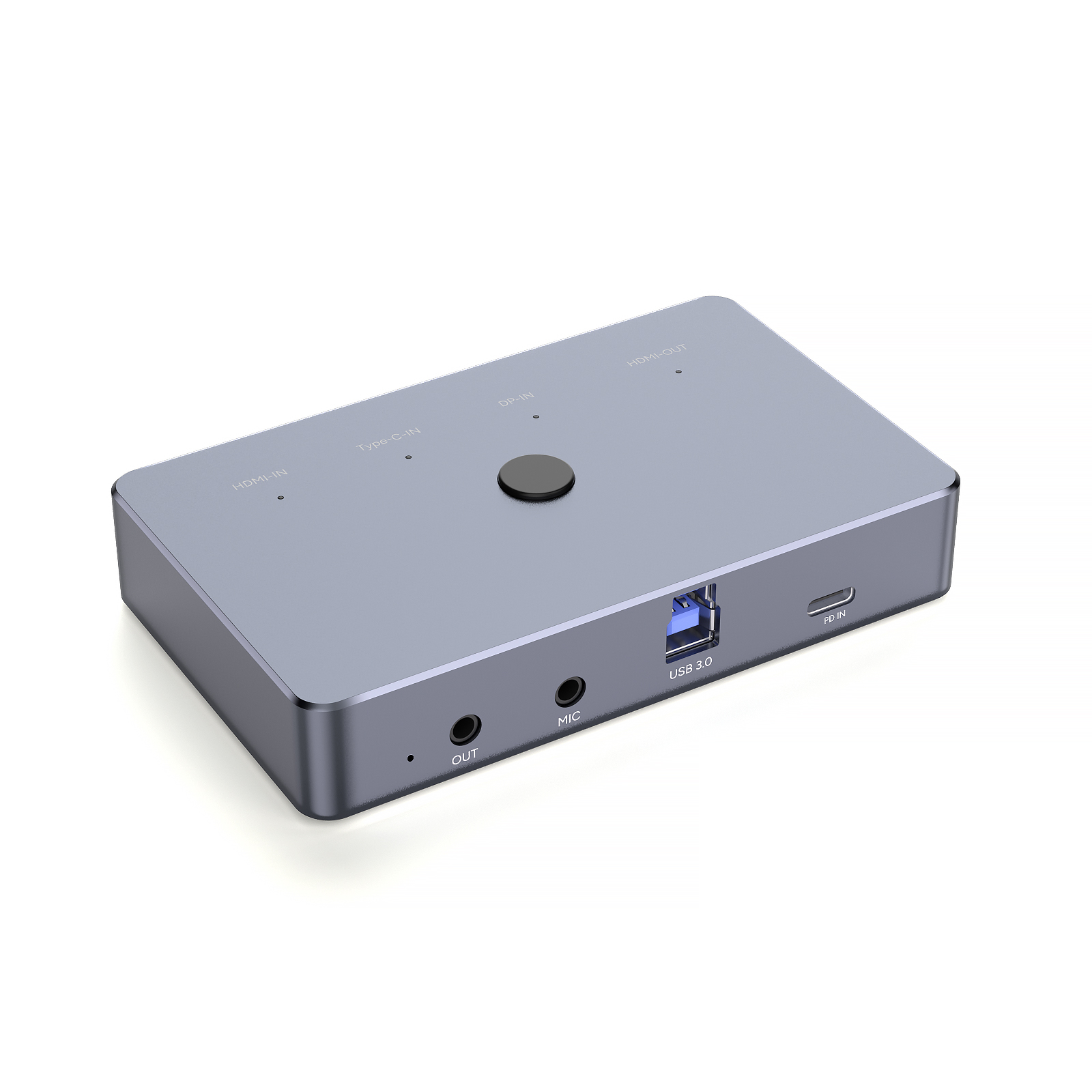

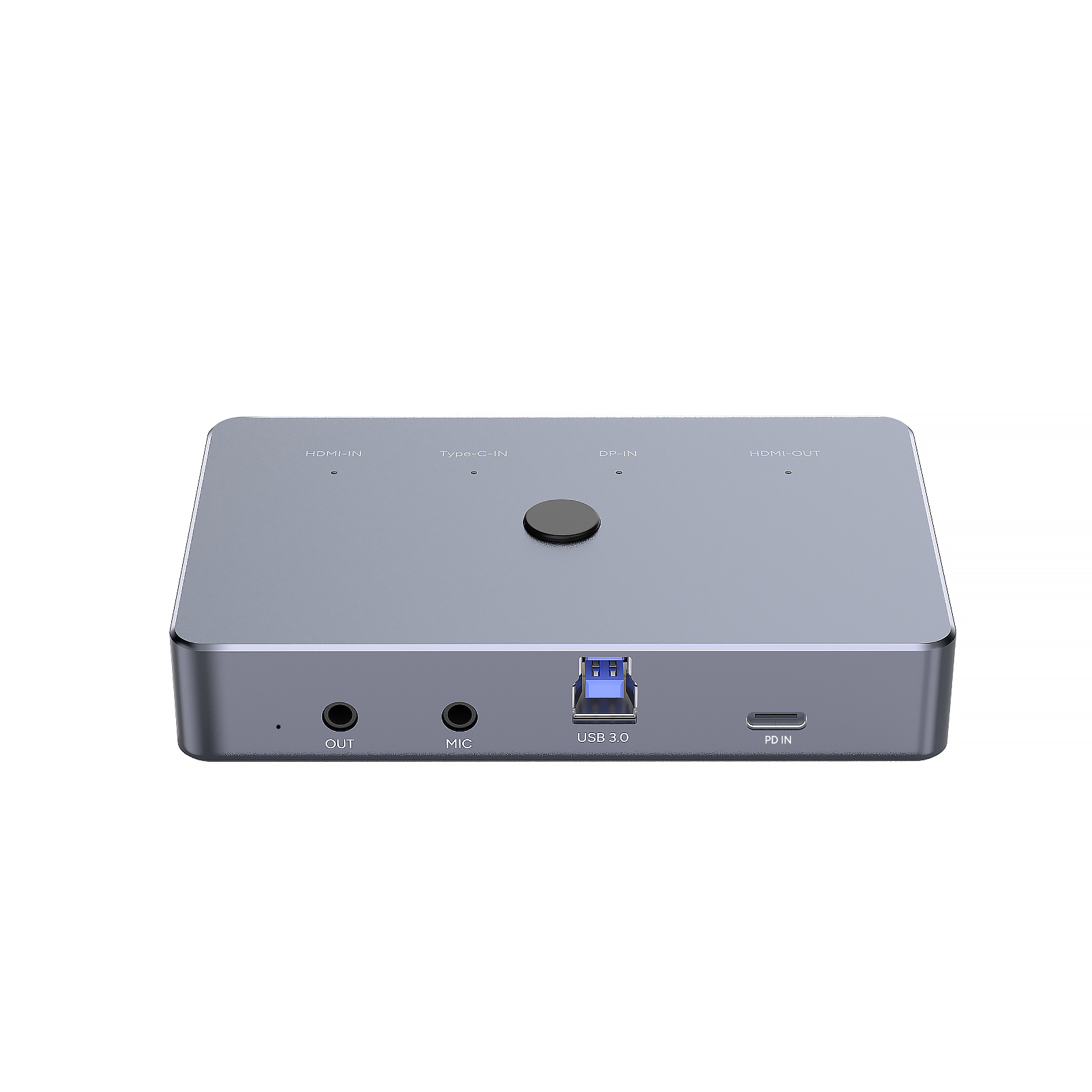

3. Professional Audio Control: Integrated 3.5mm Microphone input supports audio mixing (analog to digital), allowing commentary to be overlaid directly onto the video feed. A separate 3.5mm audio out permits real-time monitoring of both the mic and source audio.
4. Superior Thermal Design: The chassis is constructed from CNC-machined aluminum alloy, optimizing heat dissipation to prevent thermal throttling and ensure stability during extended broadcast sessions.
5. Plug-and-Play Compatibility: Fully compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards. No driver installation is required. Works instantly with Windows, macOS, Linux, and Android, and is compatible with major streaming software like OBS, vMix, XSplit, and Mshow.
Specifications
| Feature |
Specification |
| Host Interface |
USB 3.0 Type-B (Compatible with USB 2.0) |
| Video Inputs (3) |
1x HDMI (4K@60Hz, HDCP 1.4) |
| 1x DisplayPort (4K@60Hz, HDCP 1.4) |
| 1x USB Type-C (4K@60Hz, DP Alt Mode 1.4) |
| Video Loop-out |
1x HDMI (Selects active input) |
| Supports 4K@60Hz, VRR, HDR, HDCP 1.4 |
| Audio I/O |
1x 3.5mm Mic In (Mixes to Digital Output) |
| 1x 3.5mm Audio Out (Monitoring) |
| Max Resolution |
Input/Loop/Capture: Up to 3840x2160 @ 60Hz |
| Indicators |
LED Status Lights for Power, Loop-out, and Active Input (HDMI/DP/Type-C) |
| Control |
Physical Source Switch Button (Default: HDMI Priority) |
| Material |
Aluminum Alloy |
