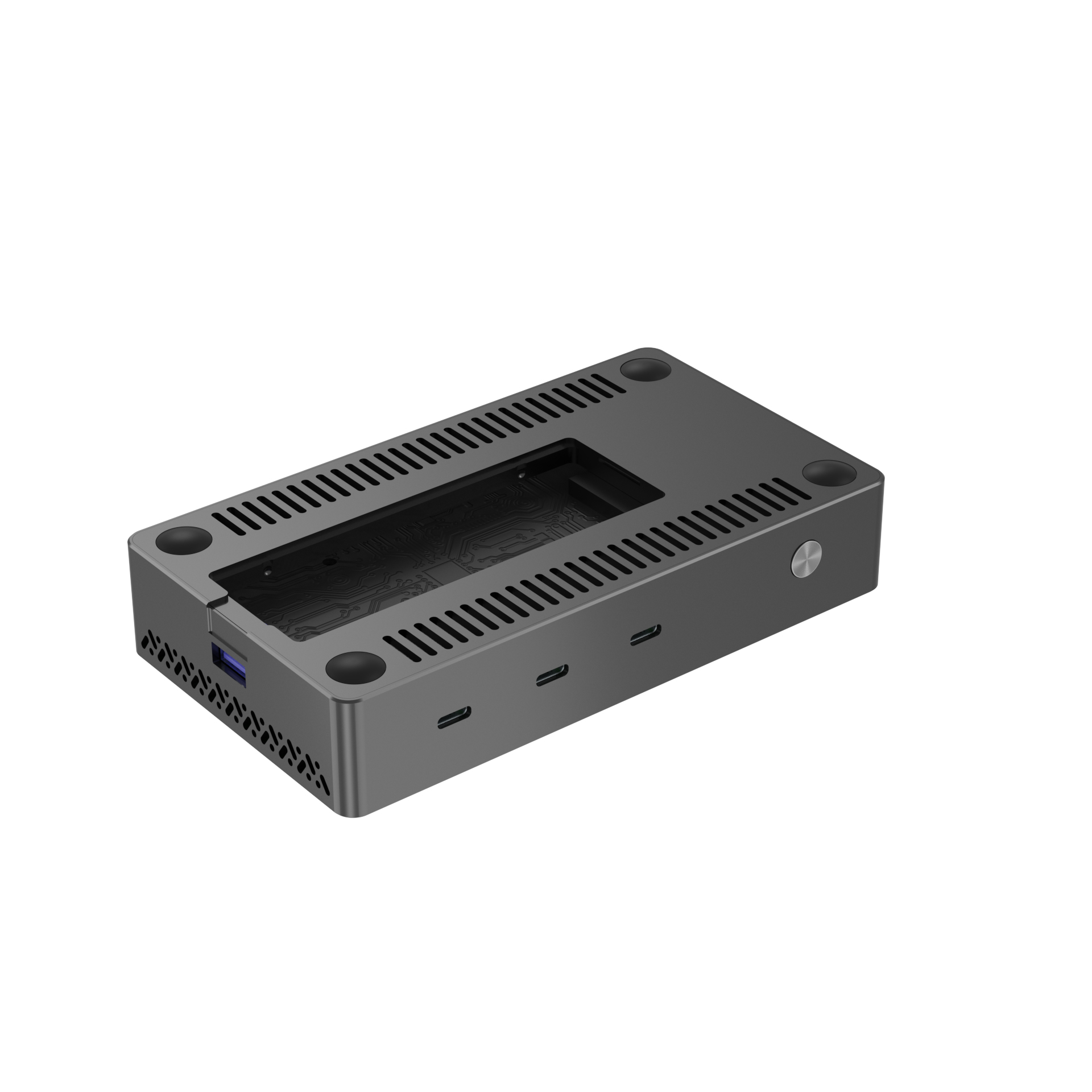

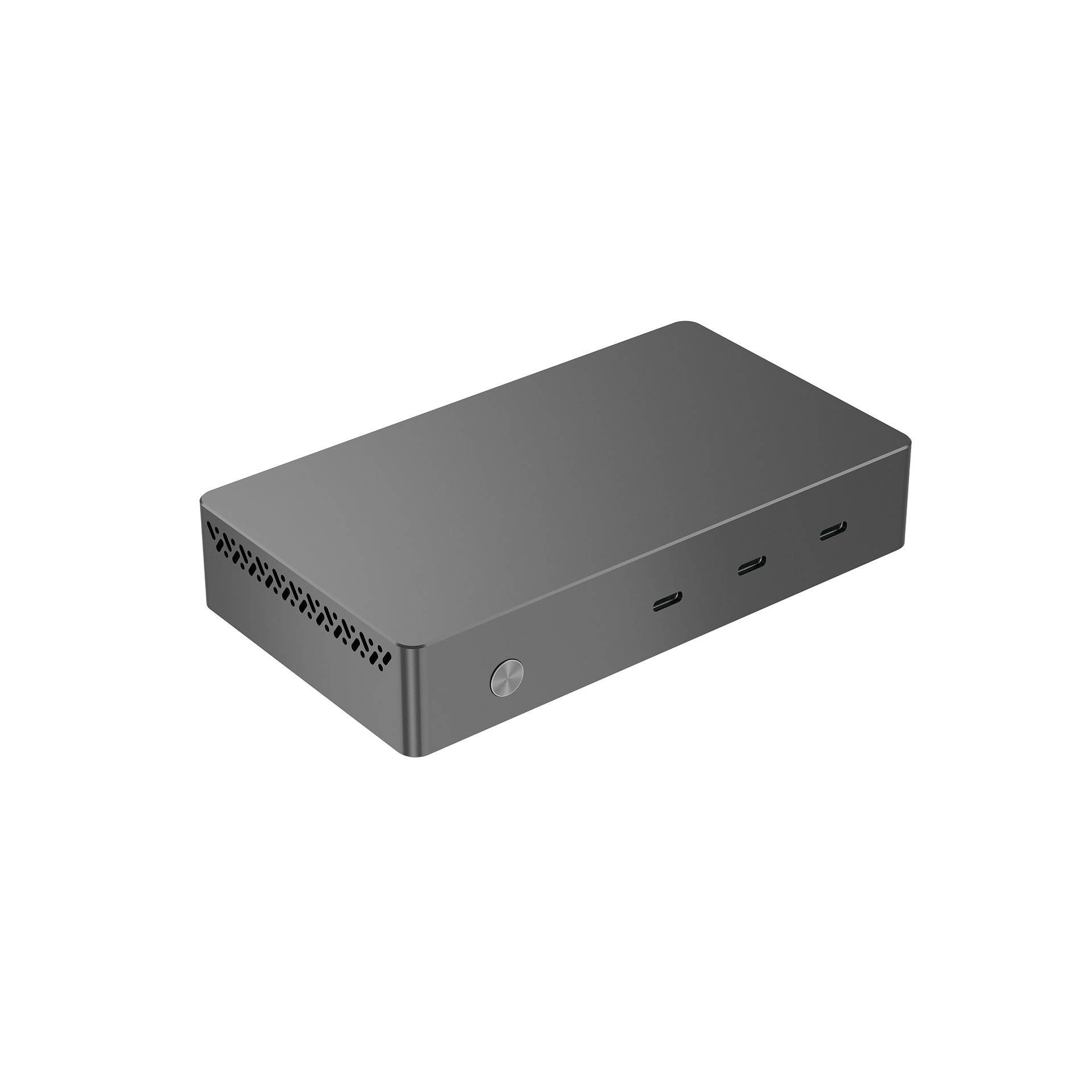

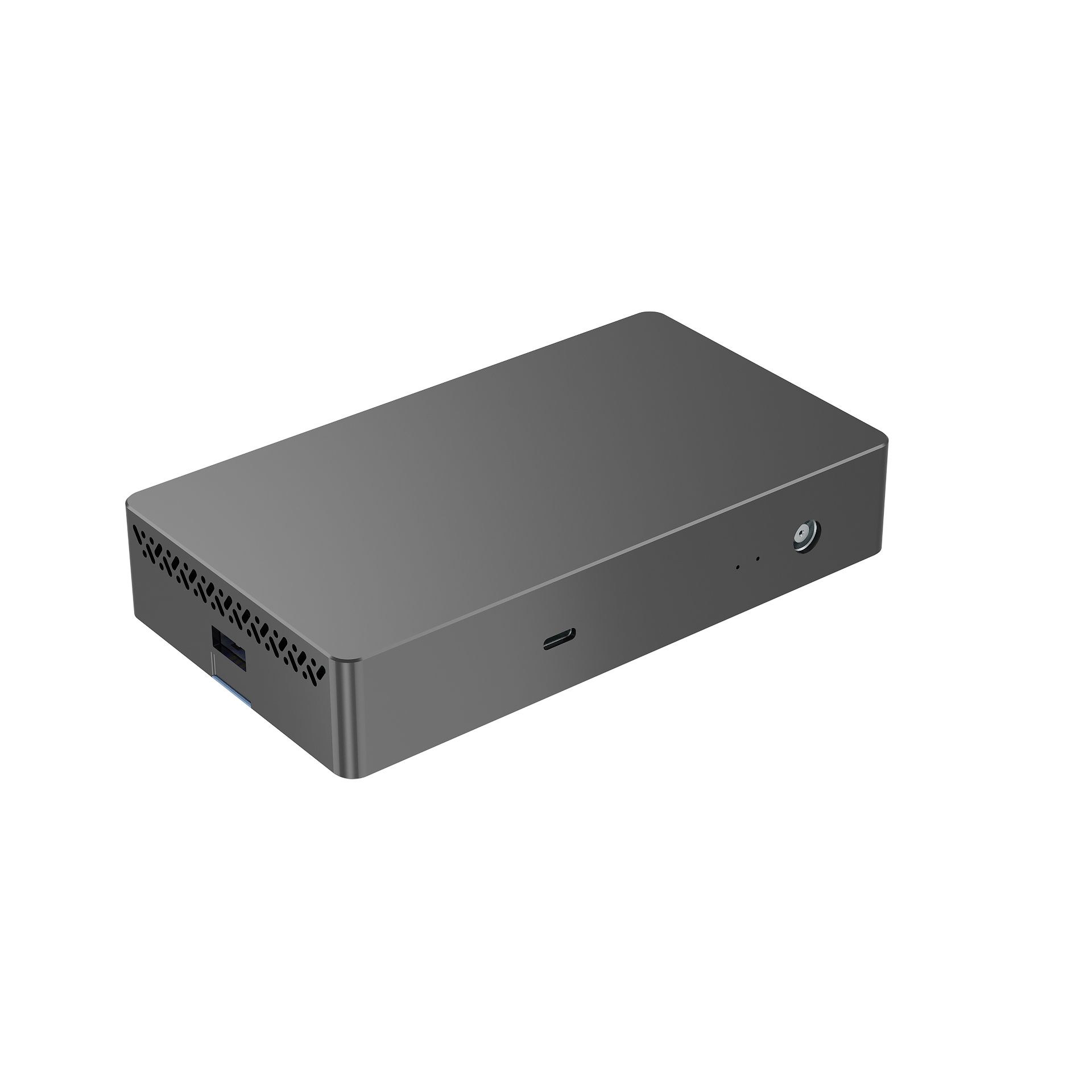

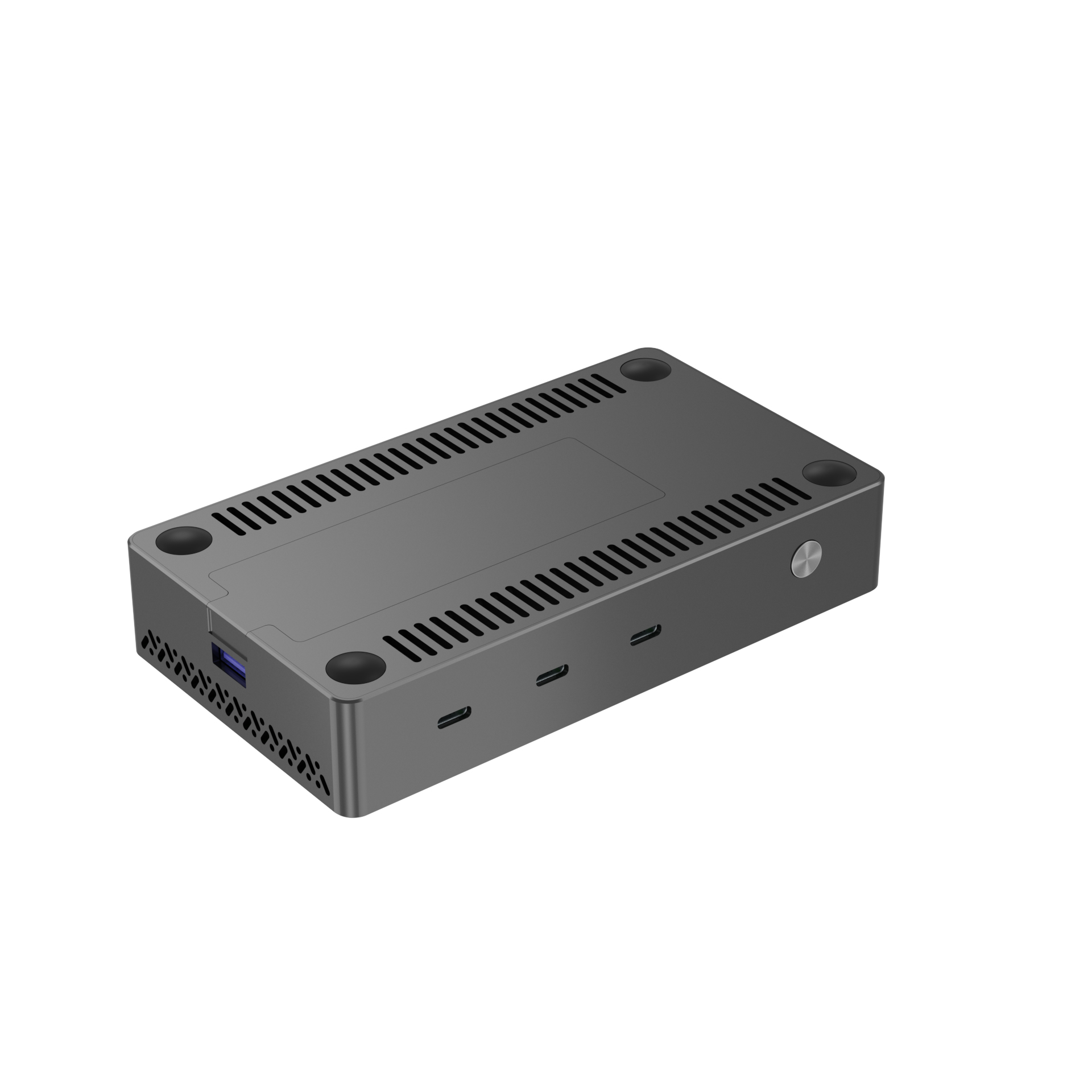

6-in-1 Thunderbolt 5 Docking Station with M.2 SSD Enclosure

　　Key Features

　　① Intel-Certified Thunderbolt 5 — 120Gbps Flagship Bandwidth

　　Powered by Intel-certified Thunderbolt 5 technology, the upstream port delivers up to 120Gbps — 3× faster than the previous generation — enabling 6GB file transfers in seconds. Fully backward compatible with Thunderbolt 4/3, USB4 2.0, and USB4 1.0, protecting your existing hardware investment without requiring equipment upgrades.

　　② Triple Independent Display Output — Up to 8K/60Hz

　　All three Thunderbolt 5 downstream ports support DP Alt Mode 2.1 with MST (Multi-Stream Transport), enabling simultaneous independent display output across three monitors. Supported configurations: single display at 8K/60Hz, dual displays at 8K/60Hz + 4K/60Hz, or three displays at 3×5K/60Hz — purpose-built for video production, financial trading desks, and multi-screen monitoring environments.

　　③ Built-in M.2 NVMe SSD Slot — PCIe Gen4, Up to 80Gbps

　　The integrated M-Key M.2 slot supports NVMe protocol with PCIe Gen4×4 interface, delivering up to 80Gbps throughput. Compatible with 2230, 2242, 2260, and 2280 form factors, supporting up to 8TB capacity. The docking station and SSD enclosure share a single unit — reducing desktop clutter and simplifying enterprise deployment.

　　④ 100W PD Reverse Charging — One Cable Does It All

　　Supports PD 3.0 protocol with up to 100W reverse charging to the host laptop, with dynamic power budget management. A single Type-C cable simultaneously handles data transfer, video output, and device charging — eliminating the need for a separate power adapter and simplifying mobile workstation setups.

　　Typical Use Cases

　　① Professional Creative Workstation — Video Editing / Graphic Design Designed for post-production studios, advertising agencies, and professional designers. A single Thunderbolt 5 cable connects your workstation to three high-resolution displays, a high-speed NVMe media drive, and external storage simultaneously. 120Gbps bandwidth eliminates bottlenecks when working with 4K/8K raw footage, while 100W PD charging keeps your laptop powered without a separate charger.

　　② Enterprise Office — Conference Rooms & Multi-Screen Collaboration Ideal for corporate meeting rooms, financial trading desks, and multi-screen data monitoring environments. Drive three independent displays for presentations, primary workflow, and secondary reference screens simultaneously. The USB 3.2 Gen2 port handles peripheral connectivity, delivering a stable and complete multi-device collaboration setup for both meetings and daily operations.

　　③ Mobile Deployment — Field Operations & System Integration Built for technical professionals and system integrators requiring rapid on-site deployment. Plug-and-play connectivity delivers charging, data, and display from one cable. The built-in SSD slot supports large-capacity on-site storage and fast data transfer, while the rugged anodized aluminum enclosure withstands demanding field environments.

FAQ

　　Q1: Does this product require driver installation?
　　A1: Plug-and-play on Windows 10/11 and macOS — the system recognizes the device automatically upon connection. For multi-display video output, we recommend installing the latest Thunderbolt and GPU drivers to ensure full compatibility and optimal performance.

　　Q2: Does the host computer need to support Thunderbolt 5?
　　A2: No. This docking station is fully backward compatible with Thunderbolt 4/3 and USB4 2.0/1.0 hosts. All ports function normally with a Thunderbolt 4 host, though maximum transfer speeds will be limited to the host's interface specification (up to 40Gbps for Thunderbolt 4). To achieve full 120Gbps performance, the host must support Thunderbolt 5.

　　Q3: Can all three displays output independent content simultaneously?
　　A3: Yes. Via the three Thunderbolt 5 downstream ports with MST (Multi-Stream Transport) support, all three monitors operate as fully independent displays — up to 3×5K/60Hz simultaneously. Each screen displays separate content, making it ideal for multi-screen monitoring, trading, and multi-task professional environments.

　　Q4: Does the M.2 slot support SATA SSDs?
　　A4: No. The M.2 slot supports NVMe protocol only (PCIe Gen4×4). NGFF and SATA M.2 drives are not compatible. Please verify that your SSD uses an NVMe interface before purchase.

　　Q5: Is an external power adapter required for 100W PD charging?
　　A5: Yes. The product requires an external power adapter connected via the DC input (20V/7.5A) to supply total system power. The 100W reverse charging output depends on the external adapter being properly connected. When powered solely through the Thunderbolt upstream port, available charging power will be reduced.

　　Q6: What is the actual transfer speed between the built-in SSD and the host?
　　A6: The M.2 slot communicates with the host via the Thunderbolt 5 channel. With PCIe Gen4×4, theoretical bandwidth reaches up to 80Gbps. Real-world read/write speeds depend on the installed SSD's performance specifications and are compatible with today's leading high-speed NVMe drives.

　　Q7: Is OEM / ODM customization available?
　　A7: Yes. We offer deep customization services covering enclosure design, firmware, and port configuration, suitable for system integrators and enterprise clients requiring branded deployment solutions. Please contact our business team for MOQ details, lead times, and custom development plans.

　　Q8: What is the warranty policy?
　　A8: All products carry a 12-month limited warranty. If a quality issue occurs that is not caused by physical damage or misuse, we will provide a free replacement or repair within the warranty period.

　　Q9: How do I request a quote or technical consultation?
　　A9: Submit your inquiry via the "Request Quote" button on the product page, or contact our official support email. Our team will respond within one business day with detailed pricing and technical support.
