Product Description
1. Extreme Transmission & Expansion

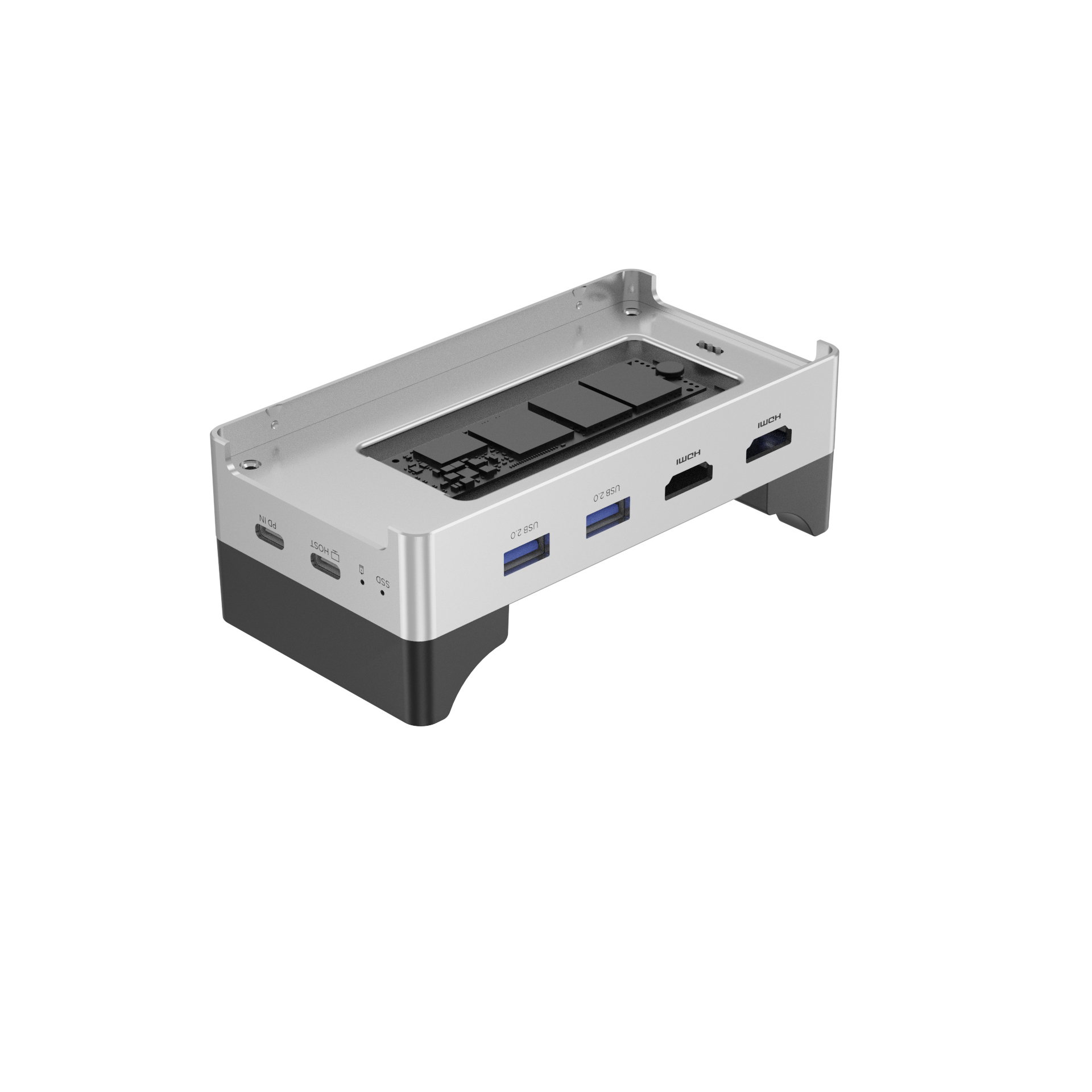

Powered by Intel-certified Thunderbolt technology, this dock delivers an uplink bandwidth of up to 40Gbps. It is both a powerful docking station and a high-performance drive enclosure. The integrated M.2 M-Key slot supports the NVMe protocol (PCIe Gen3 x4) and is compatible with 2230/2242/2260/2280 SSDs. With support for up to 8TB expansion, it is the perfect storage solution for your Mac mini.
2. Dual 4K Ultra-HD Display
Equipped with dual HDMI ports, the dock supports simultaneous output to two 4K@60Hz (4096*2160) monitors. Whether in Extended or Mirror mode, it provides a seamless, high-definition visual experience—ideal for professional video editing, graphic design, and multitasking.
3. Comprehensive Interface Layout
- High-Speed Ports: 4 x USB 3.2 Gen2 ports provide 10Gbps transfer speeds, perfect for high-speed external drives and flash storage.
- Peripheral Ports: 2 x USB 2.0 ports are dedicated to mice, keyboards, and other peripherals to ensure a stable, lag-free connection.
Independent Power Supply: Featuring an auxiliary power input to guarantee stable operation even when driving multiple high-power devices or large-capacity SSDs.
4. Intelligent Cooling & Premium Design
- Material: Crafted from high-strength aluminum alloy with an anodic oxidation finish. It is scratch-resistant, durable, and aesthetically matches the Mac mini’s signature look.
- Cooling System: Built-in smart temperature-controlled fan. The fan activates at 45°C and switches to high-speed mode (5500 RPM) above 55°C, ensuring your SSD maintains peak-performance without thermal throttling.
5. LED Indicator System
Features dedicated M.2 Status LEDs (solid for power on, flashing for data transmission) and a Power LED, allowing you to monitor the device's working status at a glance.
Specifications:
1 x Thunderbolt 3/USB4 Uplink (40Gbps)
1 x M.2 NVMe SSD Slot (PCIe 3.0 x4, Max 8TB)
2 x HDMI 2.0 (Dual 4K@60Hz)
4 x USB 3.2 Gen2 (10Gbps)
2 x USB 2.0 (480Mbps)
1 x USB-C PD/DC Input (30W PD or 5V/4A)
