Key Features
80Gbps Flagship Bandwidth: Equipped with a Thunderbolt 5 upstream port delivering up to 80Gbps data throughput. It meets the demands of massive professional data transfers, ensuring stable host-peripheral communication under extreme workloads.

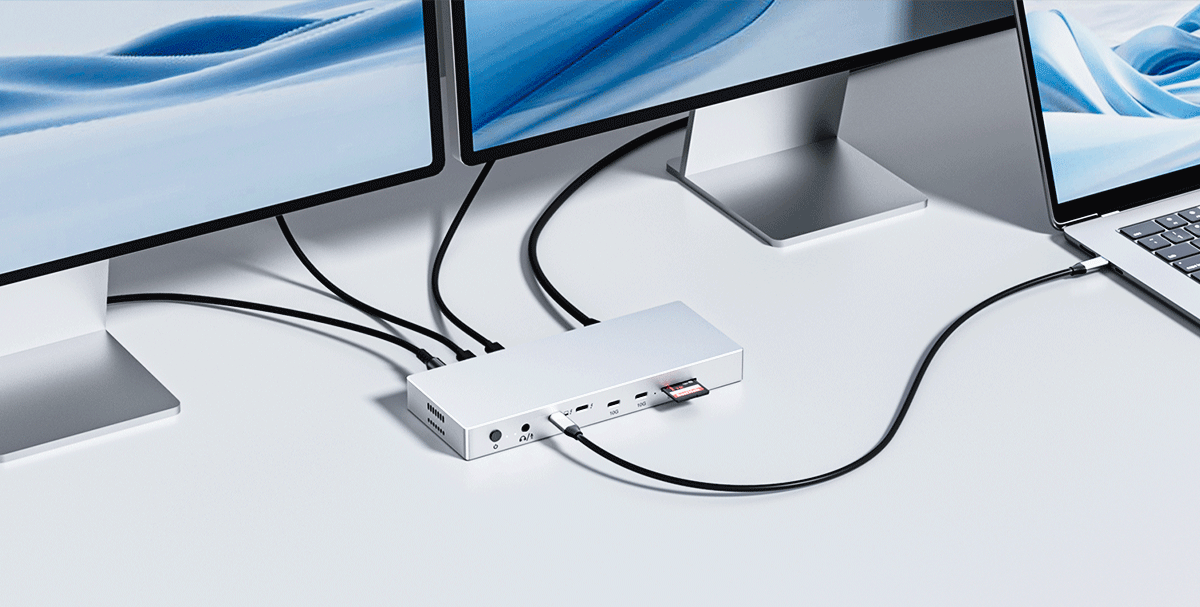

8K Multi-Display Extension Features 1x Thunderbolt 5 and 2x Mini DisplayPort downstream interfaces. Supports independent video output up to 7680×4320@60Hz, ideal for building professional multi-monitor monitoring and content creation environments.

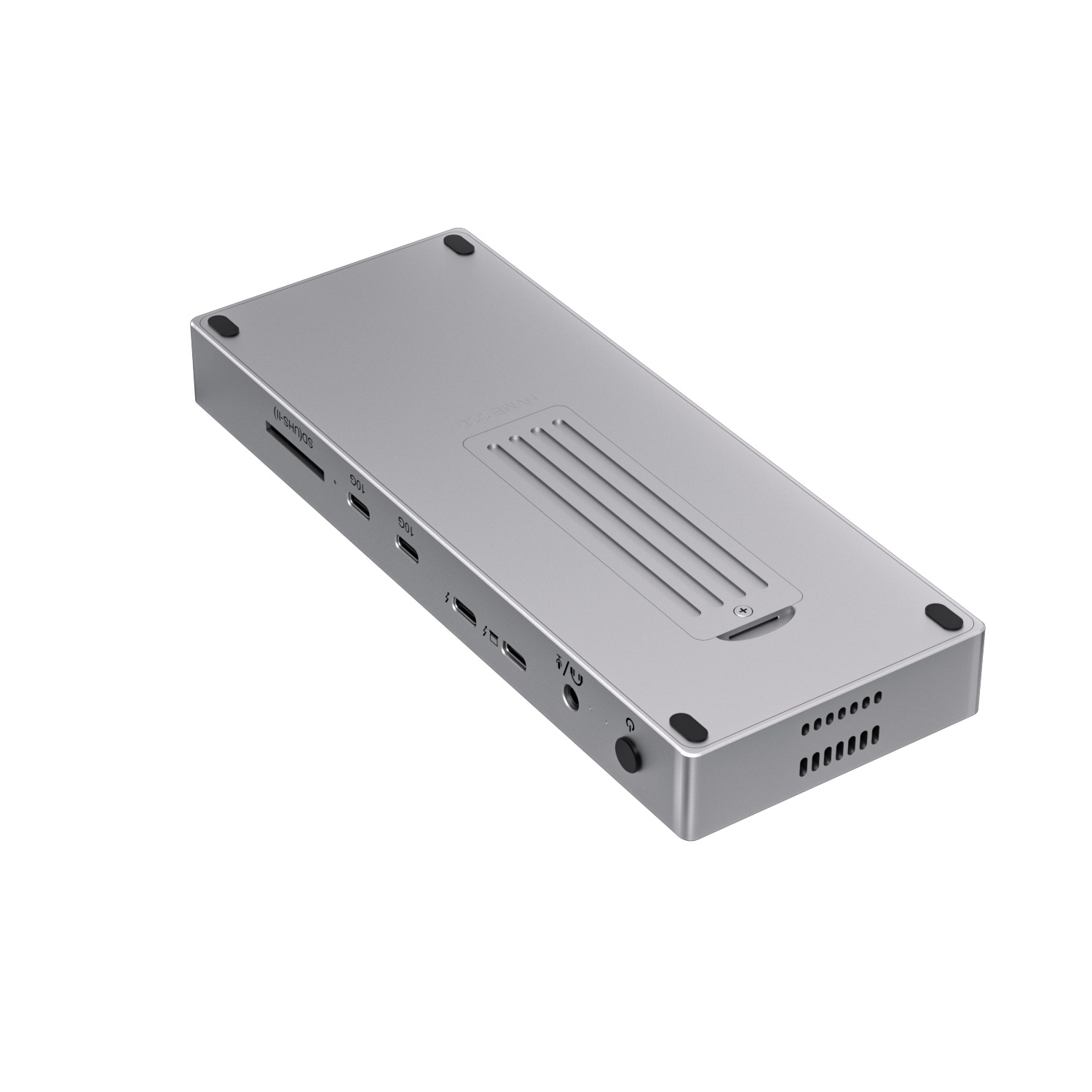

Built-in NVMe Storage Integrates an internal M.2 slot (supports M Key and B&M Key) for 2280 NVMe SSDs. Utilizing the 80Gbps high-speed channel, it seamlessly combines docking capabilities with local storage expansion, reducing desktop clutter.

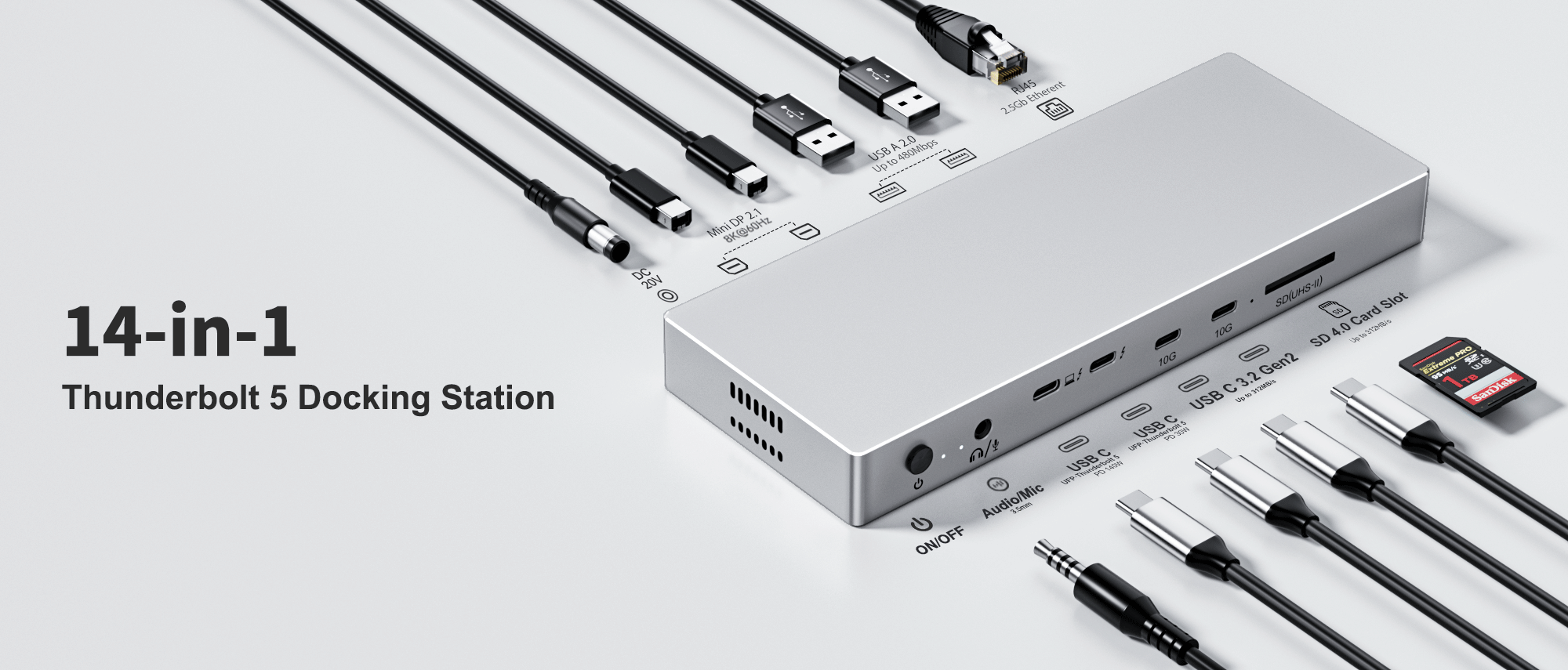

Comprehensive Connectivity Incorporates a 2.5GbE LAN port, SD 4.0 reader (312MB/s), USB 3.2 Gen2, 3.5mm audio, and dedicated DC power input. A single device consolidates all mainstream enterprise peripherals within a reliable aluminum chassis.
Use Cases
Professional Cre-ative Workstation (Video Editing / Design) Engineered for post-production and 3D design teams. Leverages TB5 bandwidth and built-in NVMe storage for real-time 8K editing, while the dual Mini DP ports perfectly support high-resolution multi-screen color grading systems.

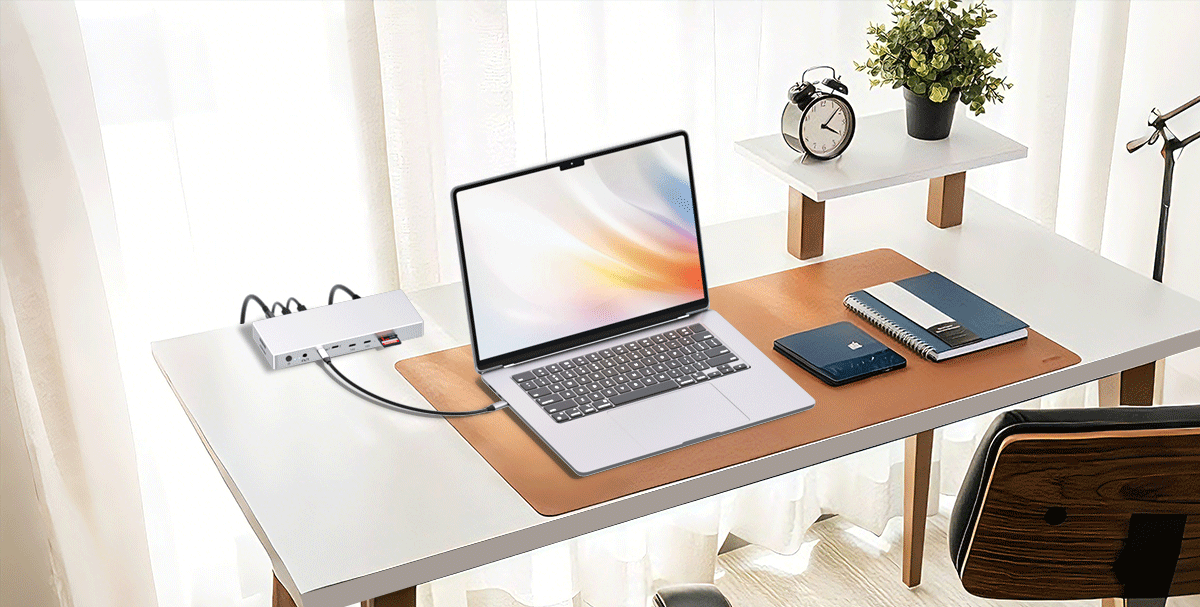

Enterprise Conference Room / Office Adapts to modern, high-standard IT deployment protocols in meeting rooms. A single cable connection provides multi-screen presentations, 2500Mbps fast intranet, and bidirectional audio, significantly enhancing corporate collaboration.
Mobile Office / Field Deployment Housed in a rugged aluminum enclosure, it easily withstands demanding physical environments. The comprehensive port selection and stable 20V/8.5A dedicated power supply guarantee efficient and secure data processing for on-site surveying or broadcasting operations.

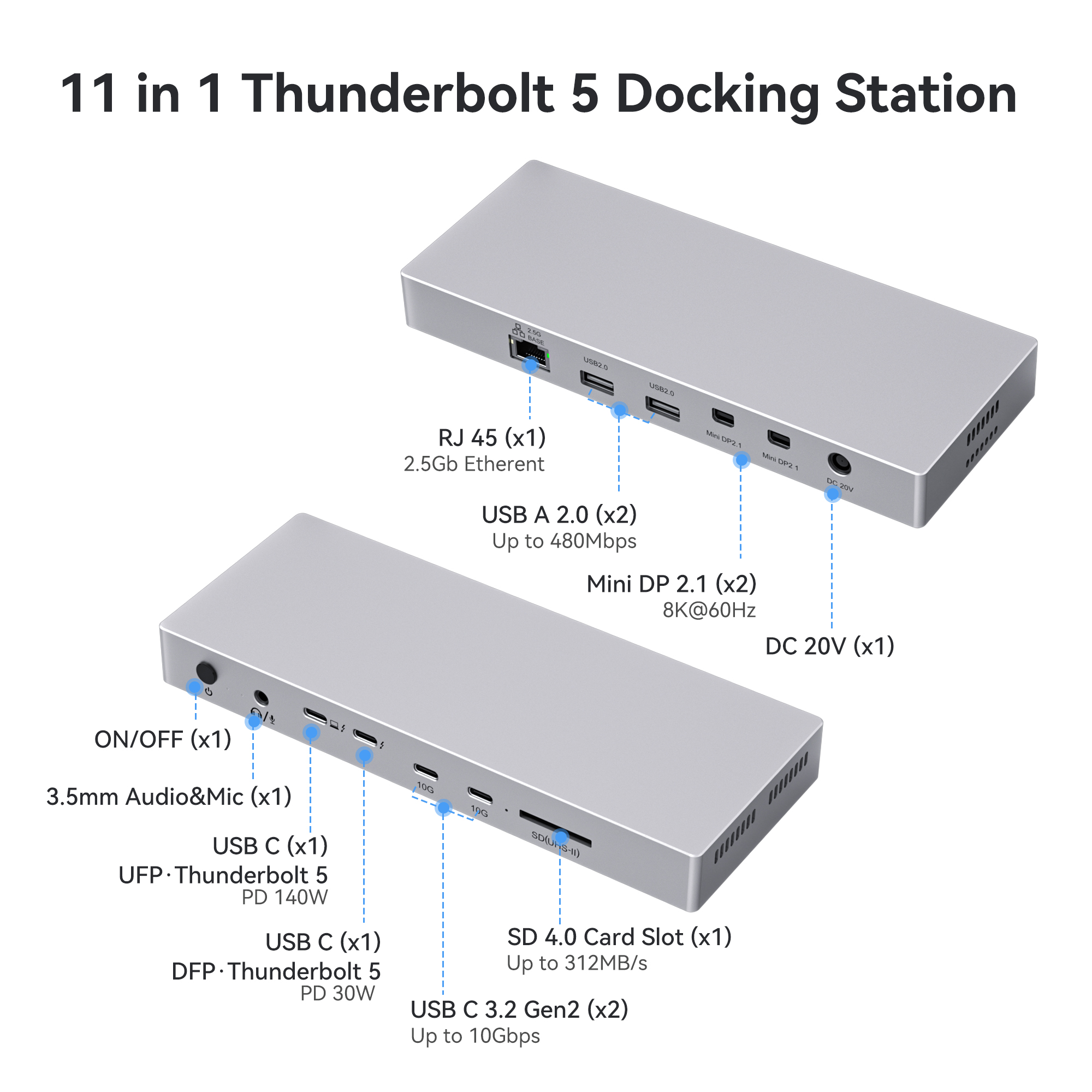

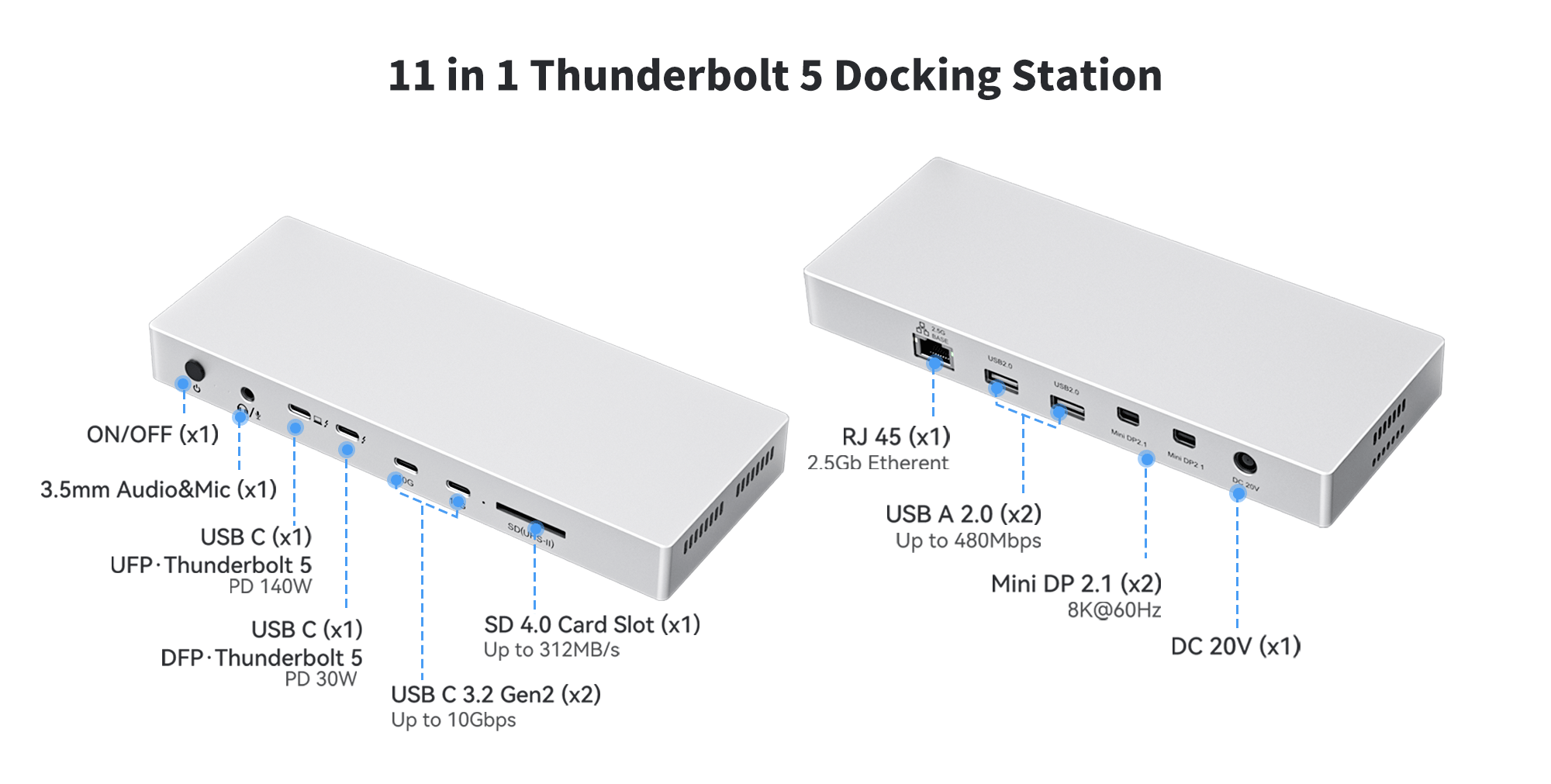

| Specification | Details |
| Host Interface | 1 × Thunderbolt 5 Upstream (Up to 80Gbps) |
| Thunderbolt Downstream | 1 × Thunderbolt 5 (Up to 80Gbps, Video up to 7680×4320@60Hz, Power 15W) |
| Video Output | 2 × Mini DisplayPort (Up to 7680×4320@60Hz) |
| USB-C Ports | 2 × USB-C (USB 3.2 Gen2 10Gbps, Power 5V/0.9A) |
| USB-A Ports | 2 × USB-A (USB 2.0 480Mbps, Power 5V/0.5A) |
| Network Interface | 1 × RJ45 Ethernet (10/100/1000/2500Mbps supported) |
| Card Reader | 1 × SD 4.0 (Up to 312MB/s read/write speed) |
| M.2 SSD Slot | 1 × M.2 Slot (Supports NVMe protocol 80Gbps, 2280 form factor, M Key & B&M Key) |
| Audio Interface | 1 × 3.5mm Audio (Audio Input/Output supported) |
| Enclosure Material | Aluminum alloy |
Q1: How many displays can be connected, and what is the maximum resolution?
A1: You can connect displays via the 1x Thunderbolt 5 downstream port and 2x Mini DisplayPort interfaces. Each video output port supports a maximum resolution of up to 7680×4320@60Hz (8K).
Q2: What type of drives does the M.2 SSD slot support?
A2: The slot exclusively supports NVMe protocol M.2 SSDs in the 2280 form factor (compatible with M Key and B&M Key). SATA (NGFF) protocol drives are not supported.
Q3: Are drivers required? What operating systems are supported?
A3: The docking station operates on underlying hardware protocols and is generally plug-and-play on mainstream enterprise operating systems (Windows and macOS) that support Thunderbolt technology, requiring no additional basic drivers.
Q4: How is the docking station powered?
A4: The product is powered by the included DC 20V/8.5A power adapter. The downstream Thunderbolt 5 port provides 15W of power, while the USB-C and USB-A ports provide 5V/0.9A and 5V/0.5A respectively.
Q5: What is the maximum speed of the network port?
A5: The built-in RJ45 Ethernet port supports 10/100/1000/2500Mbps auto-negotiation, meeting enterprise demands for 2.5GbE high-speed intranet transmission.
Q6: What is the difference between the Thunderbolt 5 port and the USB-C ports?
A6: The Thunderbolt 5 downstream port offers up to 80Gbps bandwidth and supports 8K video output. The other two USB-C ports utilize the USB 3.2 Gen2 protocol, providing up to 10Gbps data transfer speeds and do not support video output.
Q7: We are a system integrator. Do you offer OEM/ODM services?
A7: Yes. We provide professional OEM/ODM manufacturing support for enterprise clients and system integrators. Please contact our B2B sales team for customized deployment solutions.
Q8: What is your warranty policy?
A8: All enterprise hardware devices are backed by a standard 12-month limited warranty. We will provide free repair or replacement for quality issues not caused by artificial damage or misuse within the warranty period.
